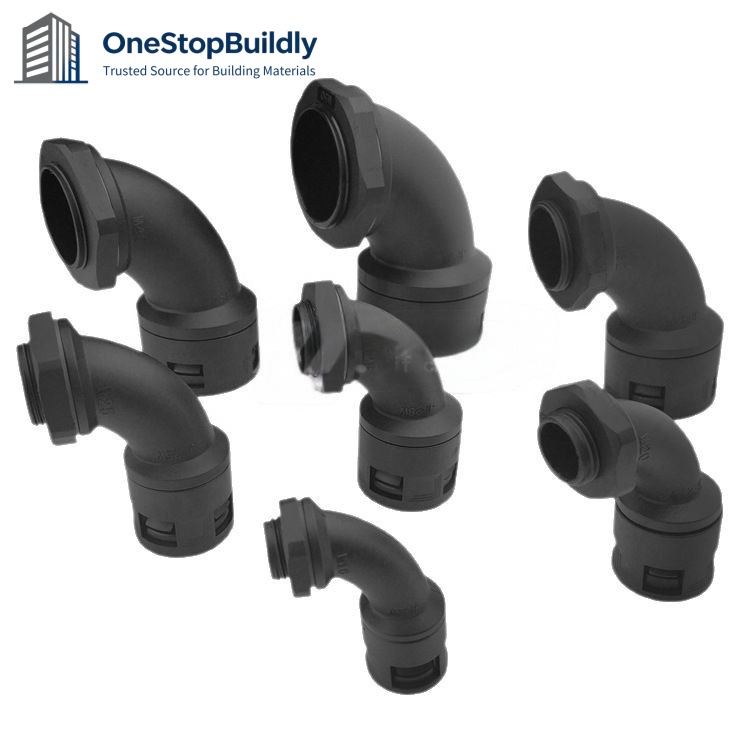

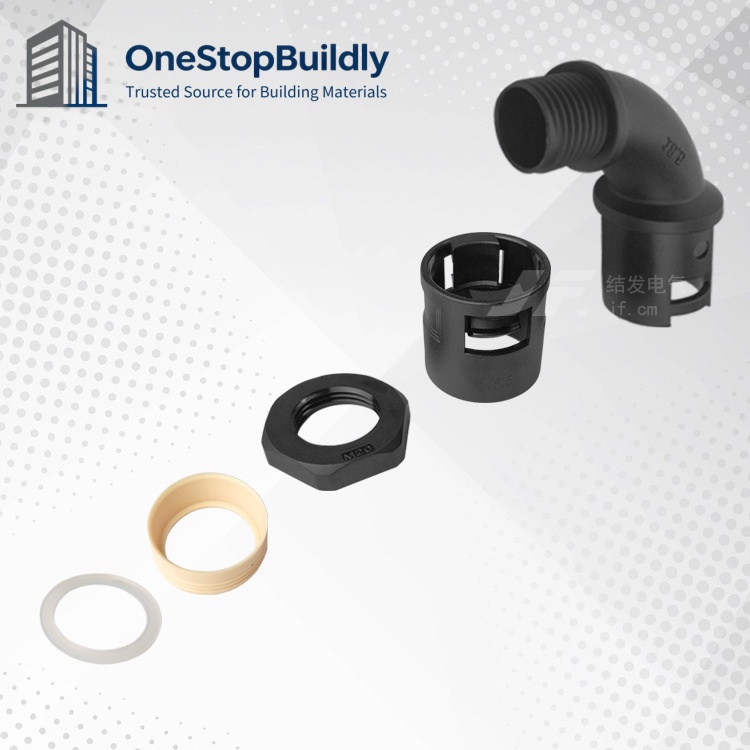

PA6 Nylon 90 Degree Quick Elbow Connectors for Corrugated Conduit
PA6 Nylon 90 Degree Quick Elbow Connectors for Corrugated Conduit
Product Overview

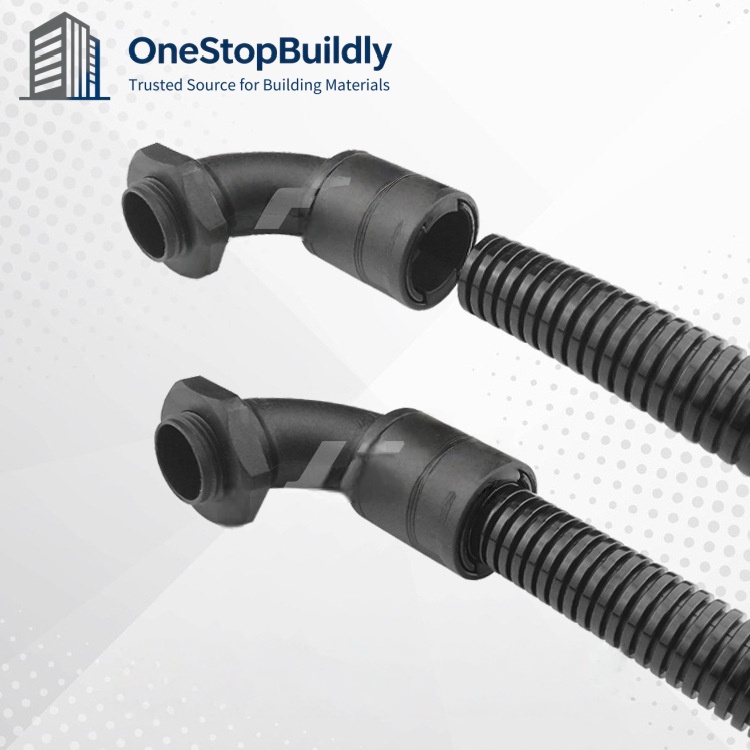

PA6 nylon quick elbow connectors for routing corrugated conduit through a 90-degree change of direction. The listed models use PG, M or G thread designations.
Specifications
|
Company SKU |
CF-007 |
|
Product type |
Quick elbow connector for corrugated conduit |
|
Material |
PA6 nylon |
|
Elbow angle |
90° |
|
Model series |
JFxxW-074, JFxxWM-074 and JFxxWG-074 |
|
Compatible conduit sizes |
10, 13, 15.8, 18.5, 21.2, 25, 28.5, 34.5, 42.5 and 54.5 mm in the combinations listed below |
|
Thread designations |
PG, M and G series as listed per model |
|
Drawing dimensions |
ID, A, B, C, D and E values are listed in mm for each model |
|
Listed pack quantity |
5, 10, 20, 25 or 50 pieces per bag, depending on model |
|
Origin |
China |
Available Variants
|
Model |
Compatible conduit size (mm) |
Thread |
Pieces per bag |
|---|---|---|---|
|
JF10W-074 |
10 |
PG7 |
50 |
|
JF13W-074 |
13 |
PG9 |
50 |
|
JF15W-074 |
15.8 |
PG11 |
50 |
|
JF18W-074 |
18.5 |
PG13.5 |
25 |
|
JF21W-074 |
21.2 |
PG16 |
25 |
|
JF25W-074 |
25 |
PG21 |
25 |
|
JF28W-074 |
28.5 |
PG21 |
20 |
|
JF34W-074 |
34.5 |
PG29 |
20 |
|
JF42W-074 |
42.5 |
PG36 |
10 |
|
JF54W-074 |
54.5 |
PG48 |
5 |
|
JF10WM-074 |
10 |
M10 x 1.5 |
50 |
|
JF13WM-074 |
13 |
M12 x 1.5 |
50 |
|
JF15WM-074 |
15.8 |
M16 x 1.5 |
50 |
|
JF18WM-074 |
18.5 |
M20 x 1.5 |
25 |
|
JF21WM-074 |
21.2 |
M20 x 1.5 |
25 |
|
JF25WM-074 |
25 |
M25 x 1.5 |
25 |
|
JF28WM-074 |
28.5 |
M25 x 1.5 |
20 |
|
JF34WM-074 |
34.5 |
M32 x 1.5 |
20 |
|
JF42WM-074 |
42.5 |
M40 x 1.5 |
10 |
|
JF54WM-074 |
54.5 |
M50 x 1.5 |
5 |
|
JF34WG-074 |
34.5 |
G1 |
20 |
|
JF42WG-074 |
42.5 |
G1-1/2 |
10 |
|
JF54WG-074 |
54.5 |
G1-1/2 |
5 |
|
JF54WG-074 |
54.5 |
G2 |
5 |
Drawing Dimensions (mm)
|
Model (thread) |
ID |
A |
B |
C |
D |
E |
|---|---|---|---|---|---|---|
|
JF10W-074 (PG7) |
7.5 |
17.5 |
46 |
8 |
16.5 |
12.3 |
|
JF13W-074 (PG9) |
11 |
20.5 |
56 |
10.2 |
18.8 |
15 |
|
JF15W-074 (PG11) |
13.5 |
23 |
60.5 |
10.2 |
22.6 |
18.6 |
|
JF18W-074 (PG13.5) |
16.5 |
28 |
70 |
12 |
25.7 |
20.4 |
|
JF21W-074 (PG16) |
17.5 |
30 |
73.5 |
12 |
26 |
22.5 |
|
JF25W-074 (PG21) |
21.5 |
34 |
82 |
12 |
28.5 |
28 |
|
JF28W-074 (PG21) |
23 |
37 |
82 |
12.2 |
27.8 |
28.3 |
|
JF34W-074 (PG29) |
30.5 |
44 |
96.5 |
12 |
36.5 |
37 |
|
JF42W-074 (PG36) |
37.5 |
53 |
110 |
12 |
41.7 |
47.3 |
|
JF54W-074 (PG48) |
48.5 |
66.5 |
126 |
14.5 |
46 |
59.3 |
|
JF10WM-074 (M10 x 1.5) |
7 |
17.5 |
46 |
8 |
17 |
10 |
|
JF13WM-074 (M12 x 1.5) |
9 |
20.5 |
55.3 |
10.2 |
19 |
12 |
|
JF15WM-074 (M16 x 1.5) |
13 |
23 |
60 |
10.3 |
22.5 |
16 |
|
JF18WM-074 (M20 x 1.5) |
16.5 |
28 |
70 |
12.2 |
26 |
20 |
|
JF21WM-074 (M20 x 1.5) |
15.3 |
30 |
72 |
12 |
26.2 |
20 |
|
JF25WM-074 (M25 x 1.5) |
21 |
34 |
82 |
12.2 |
28 |
25 |
|
JF28WM-074 (M25 x 1.5) |
21 |
37 |
81 |
12.3 |
29.9 |
25 |
|
JF34WM-074 (M32 x 1.5) |
26.3 |
44 |
95 |
15 |
37.2 |
32 |
|
JF42WM-074 (M40 x 1.5) |
35.2 |
53 |
107.5 |
12.2 |
41.8 |
40 |
|
JF54WM-074 (M50 x 1.5) |
44.5 |
66.5 |
120 |
14.7 |
46.1 |
50 |
|
JF34WG-074 (G1) |
26.3 |
44 |
95 |
15 |
37.2 |
33.2 |
|
JF42WG-074 (G1-1/2) |
37.5 |
53 |
110 |
12 |
41.7 |
47.8 |
|
JF54WG-074 (G1-1/2) |
42.5 |
67 |
120 |
17 |
45.7 |
47.8 |
|
JF54WG-074 (G2) |
48.5 |
66.5 |
126 |
14.5 |
46 |
59.6 |
Packing & Delivery
Packing
· Protective materials are selected to suit the product's shape, size and weight.
· Outer cartons are selected for the product and export transport requirements.
· Small parts are bagged by model and specification, with product and quantity labels.
· Corner protection, reinforcement or pallets are arranged as required.
· Logo, packing dimensions and shipping marks can be customized to order requirements.
Delivery
· Sample orders: 3–5 working days.
· Bulk orders: 10–20 working days, depending on order quantity.
· In-stock items: dispatch within 48 hours.
· Shipping options: DHL, FedEx or sea freight.
· Delivery schedules are confirmed with the order.
-
