Blue-White Zinc Plated Q195 Carbon Steel Hex Socket Confirmat Cabinet Screws

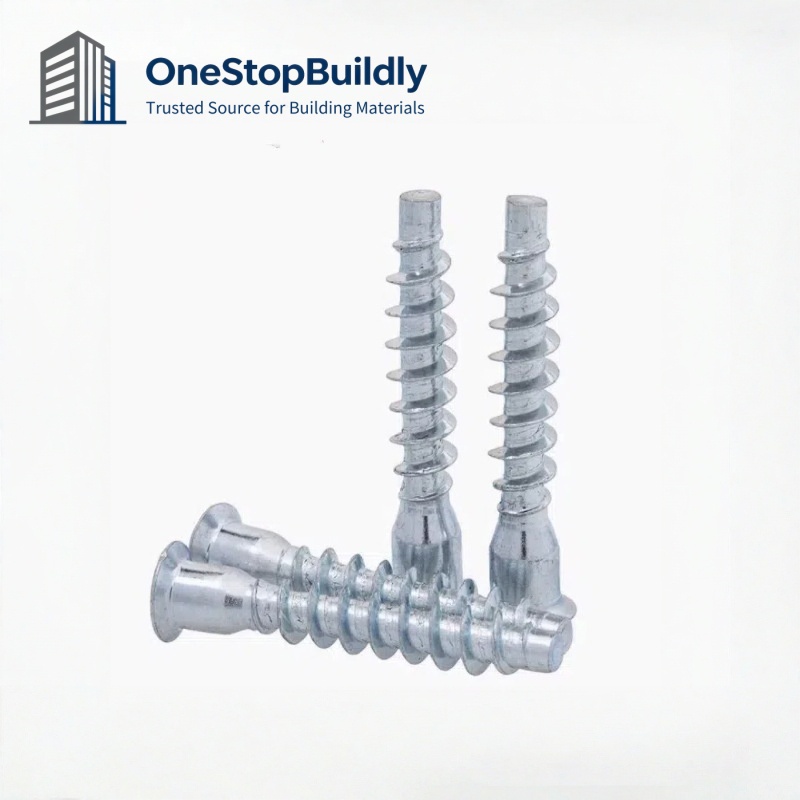

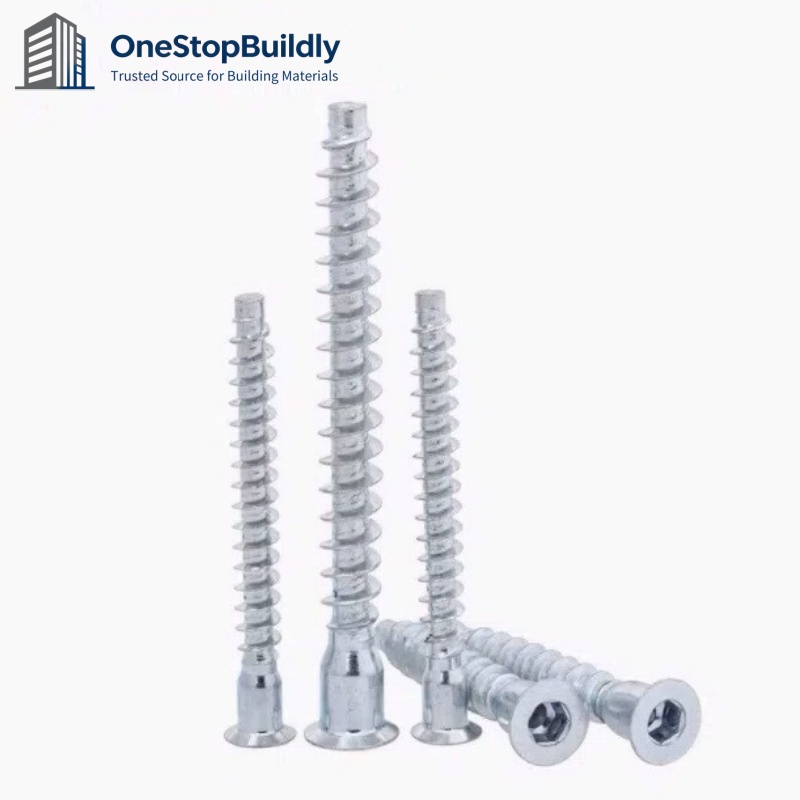

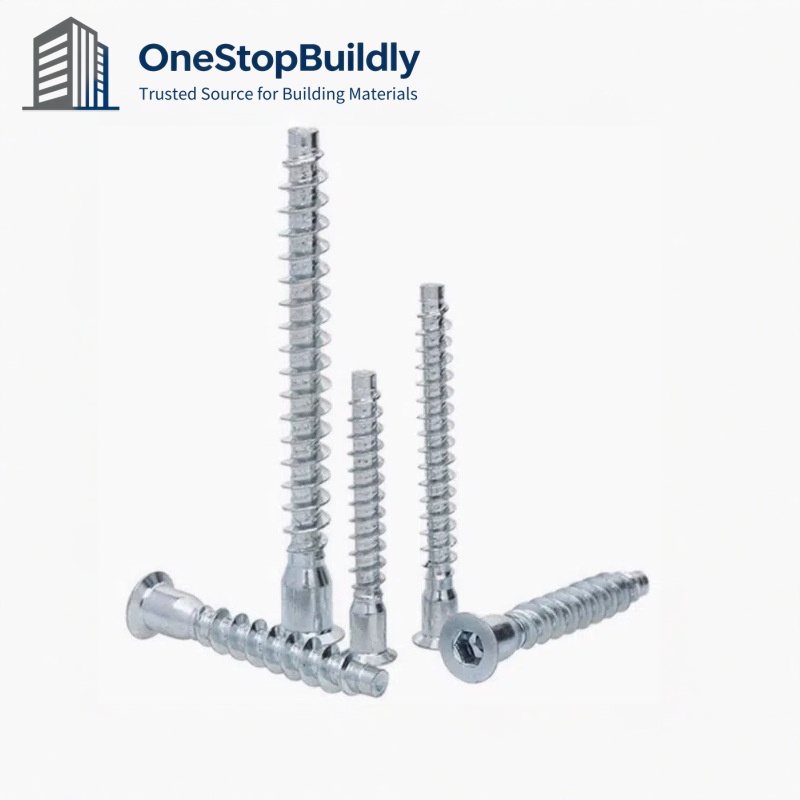

Q195 carbon steel confirmat screws with a blue-white zinc finish, countersunk heads and internal hex drives. The blunt-ended screws are offered in eleven size designations for cabinet and furniture assembly.
Add to quote
ꁆ ꁇ
낙Add to cart
Quantity： ꄷ ꄸ

Blue-White Zinc Plated Q195 Carbon Steel Hex Socket Confirmat Cabinet Screws

Product Overview

Q195 carbon steel confirmat screws with a blue-white zinc finish, countersunk heads and internal hex drives. The blunt-ended screws are offered in eleven size designations for cabinet and furniture assembly.

Specifications

Company SKU

SCR-03

Product type

Confirmat cabinet screw

Material

Q195 carbon steel

Surface finish

Blue-white zinc plating

Head type

Countersunk

Drive

Internal hex socket

Tip

Blunt end

Application

Cabinet and furniture assembly

Origin

China




Available Variants

Size designation

Dimensions (mm)

5 x 30

Listed nominal length: 30

5 x 35

Listed nominal length: 35

5 x 40

Listed nominal length: 40; Thread diameter D: 5; Hex socket S: 3; Head diameter H: 7.5

5 x 50

Listed nominal length: 50; Thread diameter D: 5; Hex socket S: 3; Head diameter H: 7.5

6.3 x 40

Listed nominal length: 40; Thread diameter D: 6.3; Hex socket S: 4; Head diameter H: 9.5

6.3 x 50

Listed nominal length: 50; Thread diameter D: 6.3; Hex socket S: 4; Head diameter H: 9.5

7 x 30

Listed nominal length: 30

7 x 40

Listed nominal length: 40; Thread diameter D: 7; Hex socket S: 4; Head diameter H: 10

7 x 50

Listed nominal length: 50; Thread diameter D: 7; Hex socket S: 4; Head diameter H: 10

7 x 60

Listed nominal length: 60; Thread diameter D: 7; Hex socket S: 4; Head diameter H: 10

7 x 70

Thread diameter D: 7; Hex socket S: 4; Head diameter H: 10




Packing & Delivery

Packing

·       Protective materials are selected to suit the product's shape, size and weight.

·       Outer cartons are selected for the product and export transport requirements.

·       Small parts are bagged by model and specification, with product and quantity labels.

·       Corner protection, reinforcement or pallets are arranged as required.

·       Logo, packing dimensions and shipping marks can be customized to order requirements.

Delivery

·       Sample orders: 3–5 working days.

·       Bulk orders: 10–20 working days, depending on order quantity.

·       In-stock items: dispatch within 48 hours.

·       Shipping options: DHL, FedEx or sea freight.

·       Delivery schedules are confirmed with the order.
