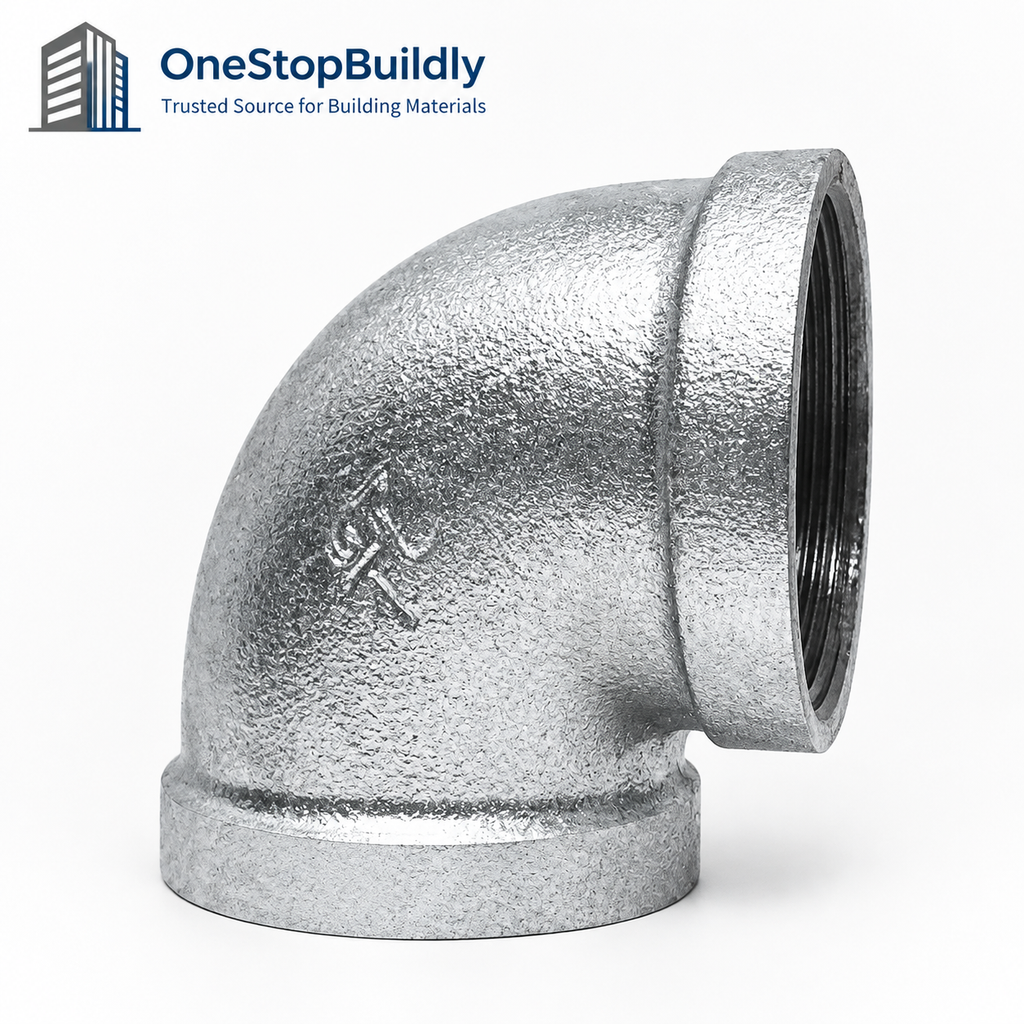

Galvanized Malleable-Iron Threaded 90-Degree Elbow
Product Type Pipe elbow
Material and Structure Malleable iron with galvanized finish; Female-threaded 90-degree elbow
Connection / Installation Threaded pipe engagement
Size / Connection Options Supplier sizes and tolerances to confirm. Nominal bore, thread standard and coating
Performance / Compliance Exact SKU ratings, standards and reports require supplier confirmation.
Galvanized Malleable-Iron Threaded 90-Degree Elbow
EL-008 is selected for general building-service pipe routing. The family combines malleable iron with galvanized finish with female-threaded 90-degree elbow. It connects by threaded pipe engagement. Specify matching dimensions and end standards; confirm the exact SKU and performance documents before project use.
Key Features
· Malleable iron with galvanized finish; Female-threaded 90-degree elbow.
· Connection: Threaded pipe engagement.
· Same-page options: Nominal bore, thread standard and coating.
· Application: General building-service pipe routing.
Applications
· General building-service pipe routing.
· Suitable project type: building, maintenance or distribution projects that specify the matching pipe system.
Specifications
|
Product Model |
EL-008 |
|
Product Type |
Pipe elbow |
|
Material and Structure |
Malleable iron with galvanized finish; Female-threaded 90-degree elbow |
|
Connection / Installation |
Threaded pipe engagement |
|
Size / Connection Options |
Supplier sizes and tolerances to confirm. Nominal bore, thread standard and coating |
|
Performance / Compliance |
Exact SKU ratings, standards and reports require supplier confirmation. |
|
Supply Scope |
Confirm order unit and included fittings, seals, backing rings, handles or accessories. |
Available Sizes / Colors / Finishes
|
Same-Page Options |
Nominal bore, thread standard and coating |
|
Availability |
Confirm size pairs, thread standards, materials and finish for the exact SKU. |
Product Family Comparison
|
Attribute |
EL-008 |
EL-001 |
EL-004 |
|---|---|---|---|
|
Family |
Pipe elbow |
Pipe elbow |
Pipe elbow |
|
Material / Structure |
Malleable iron with galvanized finish; Female-threaded 90-degree elbow |
PPR; exact compound to confirm; Equal-bore 90-degree molded elbow |
PVC; exact grade to confirm; 45-degree molded elbow |
|
Connection |
Threaded pipe engagement |
Socket heat fusion |
Solvent-socket connection |
|
Primary Use |
General building-service pipe routing |
Direction change in matched PPR pipe systems |
Water-pipe routing and compact direction changes |
Installation
· Threaded pipe engagement.
· Confirm the elbow angle, pipe end dimensions and installation clearance before joining the line.
· Follow the confirmed supplier procedure and the project specification. Inspect the joint and complete the required system test before service.
Packaging & Shipping
|
Packing to Confirm |
Use counted inner packs and cartons with socket or thread protection. Confirm quantity, carton dimensions and gross weight. |
Customization Options
Request nominal bore, thread standard and coating. Confirm exact SKU availability, drawings, samples and any custom options before listing or ordering.
Quality and Compliance
· Confirm thread pitch, coating thickness and intended service; exclude fire or gas claims unless approved.
· Material grade, performance ratings, certificates and destination-specific compliance remain to be confirmed for the exact ordered SKU.
FAQ
What information should I include in a quotation request?
Provide EL-008, quantity, destination, end connection and nominal bore, thread standard and coating. State the project service and any required standard.
Which dimensions and options can be customized?
Nominal bore, thread standard and coating. Confirm the supplier's current range and request a drawing or sample for approval.
Can this elbow connect to another pipe system?
Confirm end dimensions, material compatibility and joining method for both sides. The family title does not guarantee cross-brand interchangeability.
Request a Project Quotation
Send EL-008, the required specification, quantity and destination to request a written quotation and sample plan.
-
