U-Channel Slot Glass Wall System, Translucent Frosted and Clear Channel Glass

Product SKU GC-105
Product Type U-Channel (Slot) Glass
Format Custom lengths, per sqm
Textures Frosted and clear
Origin Dongguan
Pricing Unit Per sqm
Export Notes Length and texture per order
Available Sizes Custom profile lengths
Available Finishes Frosted or clear channels

Add to quote

ꁆ ꁇ

Add to cart

Quantity： ꄷ ꄸ

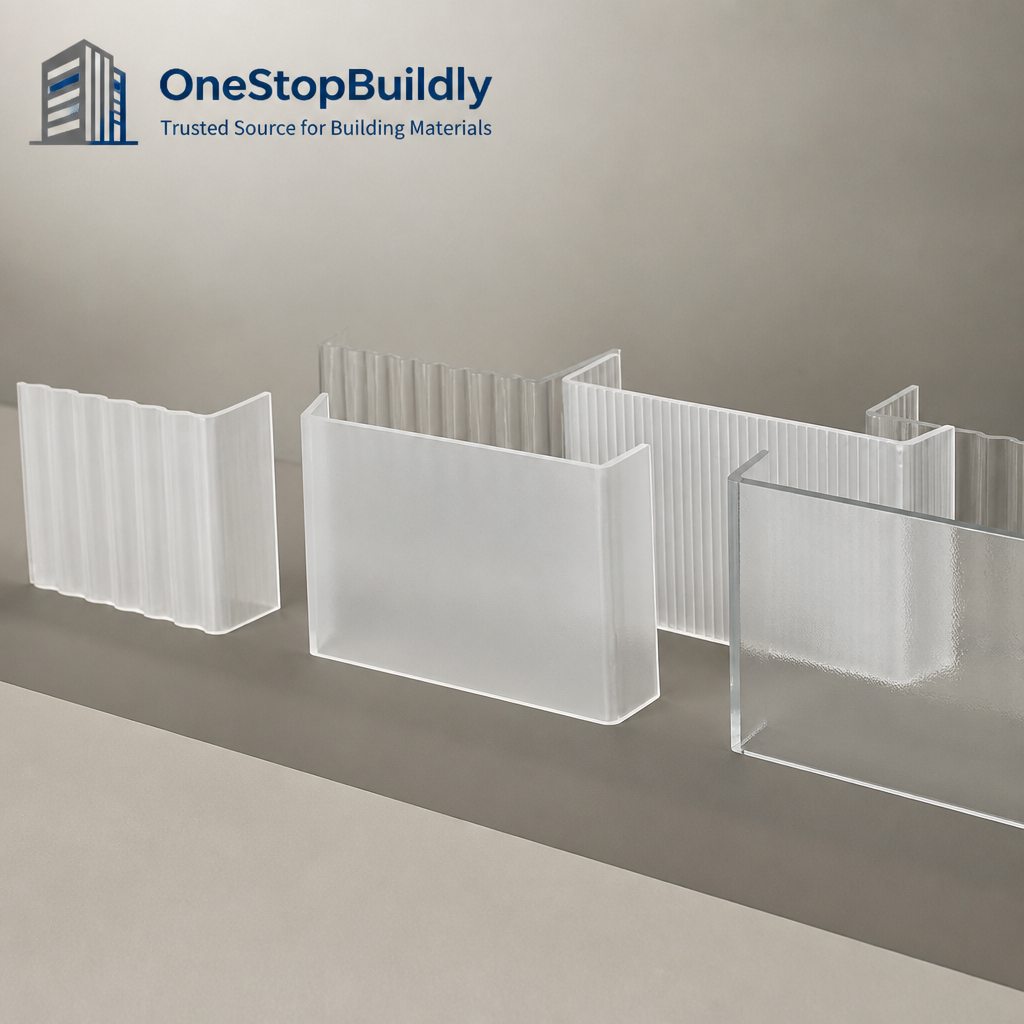

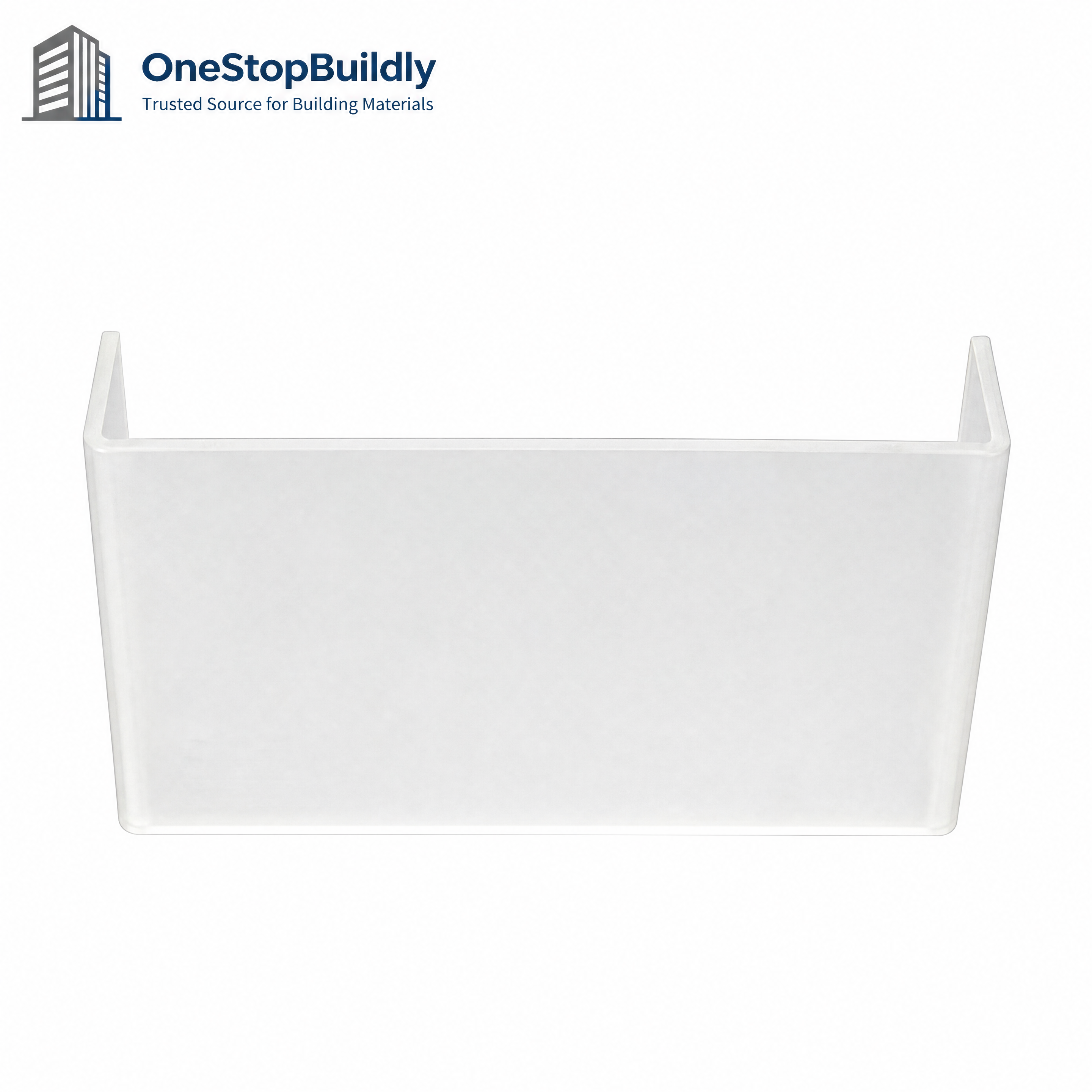

U-Channel Slot Glass Wall System, Translucent Frosted and Clear Channel Glass

GC-105 is U-channel (slot) glass in translucent frosted and clear options for facades and partition walls. The self-supporting channel form is popular in European architecture for light-transmitting walls.

Key Features

· U-channel self-supporting glass profile

· Translucent light transfer without frames

· Frosted and clear texture options

· Facade and partition wall use

· European-popular system form

· Edge-protected crate packing

Applications

· Commercial facades on malls, office towers and hotels using stick or unitized systems.

· Public transport buildings requiring acoustic and thermal insulated glazing.

· Fire-rated glazing for refuge rooms, stairwells and compartment walls.

· Feature facades and partitions with U-channel, laminated or switchable glass.

Specifications

Product SKU	GC-105
Product Type	U-Channel (Slot) Glass
Format	Custom lengths, per sqm
Textures	Frosted and clear
Origin	Dongguan
Pricing Unit	Per sqm
Export Notes	Length and texture per order

Available Sizes / Colors / Finishes

Available Sizes	Custom profile lengths
Available Finishes	Frosted or clear channels

Product Family Comparison

Attribute	GC-101	GC-103	GC-106
Type	Alu-framed stick curtain wall	Unitized curtain wall	Insulated Low-E DGU
Format	Per project, per sqm	Unit modules, per sqm	5+6A+5 makeup, per sqm
Primary Use	Commercial facades	High-rise rapid install	Windows and glazing
Pricing Unit	Per sqm	Per sqm	Per sqm

Installation

· Curtain-wall packages are engineered per shop drawings: confirm grid, dead loads and anchor zones before production.

· Glass ships in crates and A-frames; handle with suction lifters and keep interlayers dry.

· Fire-rated and insulated units require destination certifications and labeled makeup per opening schedule.

Packaging & Shipping

Packing

Crates with edge protection

Customization Options

Channel lengths and texture are configured per wall elevation drawing.

Quality and Compliance

· Applicable certificates and test reports must match the exact model, certificate holder, scope and validity before publication or order release.

· Destination-market requirements for the selected SKU must be reviewed before order release.

FAQ

What information is needed for a quotation?

Provide the required model, specification, color or finish, quantity, destination, packing preference and trade terms.

Why is U-glass popular in Europe?

The channel profile self-spans without vertical frames, giving continuous translucent walls with fast installation.

Can U-glass reach full height?

Channel glass spans several meters per profile; taller walls stack channels in aluminum base and cap tracks.

Request a Project Quotation

Send the required model, specification, color or finish, quantity, destination, packing preference and trade terms to request a written quotation and sample plan.
