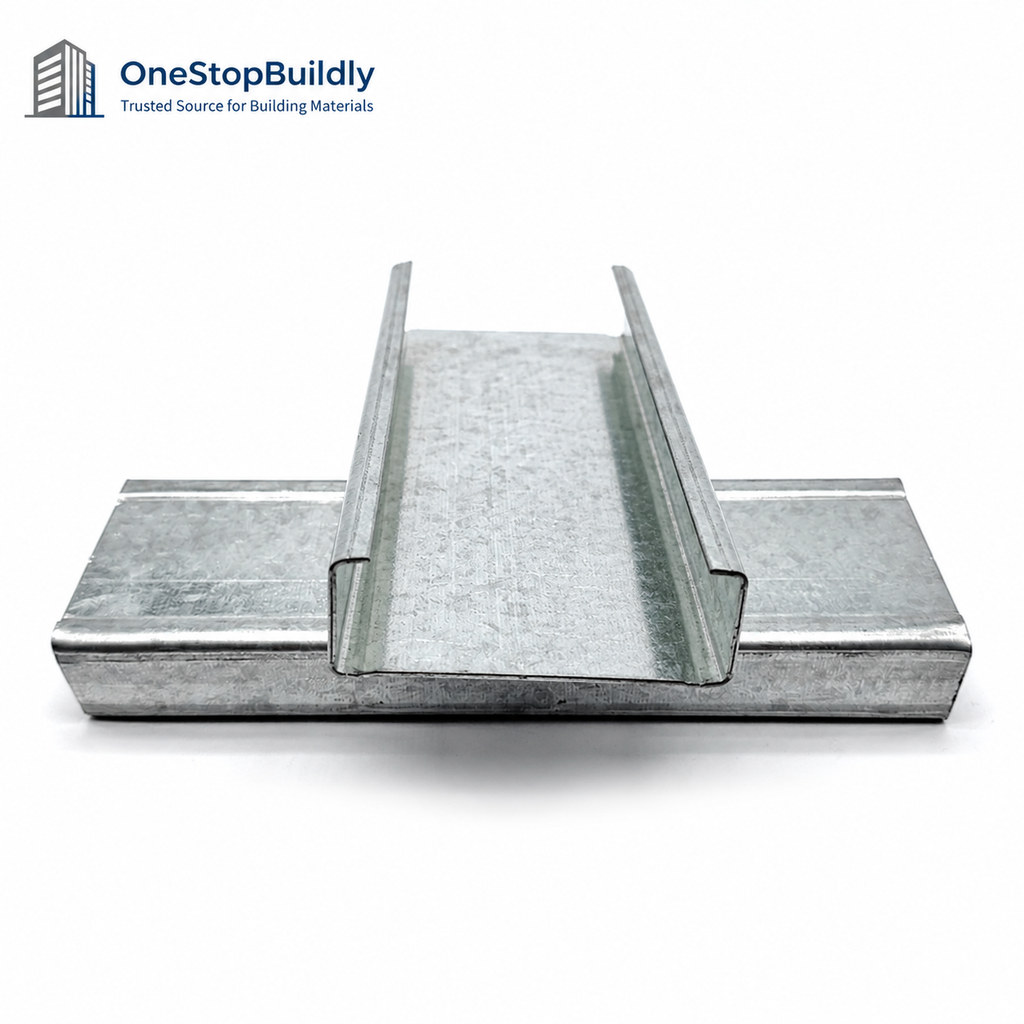

38x12mm U-Type Load-Bearing Carrier Channel

KL-105 is a 38x12mm U-type load-bearing carrier channel for span-loaded ceilings. The profile carries heavier services above wide spans, from plant halls to long corridors.

Key Features

· 38x12mm U-type carrier

· Load-bearing profile duty

· Wide span coverage

· Services load above ceilings

· Bundle packing

· Wholesale supply for span programs

Applications

· School and office ceiling framing on furring and carrier channels.

· Partition framing with stud and track families.

· Export programs with kit-form and market-specific profiles.

· Tile ceilings on T-runners with perimeter trim sets.

Specifications

Product SKU	KL-105
Product Type	Load-Bearing Carrier
Profile	38x12mm U-type
Length	3m standard
Use	Span-Loaded Ceiling Framing
Standard	GB/T 11981 series
Pricing Unit	Per bar

Available Sizes / Colors / Finishes

Available Profiles	38x12mm carrier
Gauge	Per span load design

Product Family Comparison

Attribute	KL-101	KL-104	KL-109
Type	Furring channel	Clip-in kit set	T-runner with trims
Format	50mm, 3m bars	Main and furring kit	38 T-runner set
Primary Use	School ceilings	Export programs	Tile ceilings
Pricing Unit	Per bar	Per bar	Per bar

Installation

· Confirm profile series, gauge and lengths against framing drawings.

· Set main carriers level and splice per span design before furring.

· Bundle labels by profile on site to speed sorting and installation.

Packaging & Shipping

Packing

Bundles by length

Customization Options

Gauge is configured per order against the span and service loads.

Quality and Compliance

· Applicable certificates and test reports must match the exact model, certificate holder, scope and validity before publication or order release.

· Destination-market requirements for the selected SKU must be reviewed before order release.

FAQ

What information is needed for a quotation?

Provide the required model, specification, color, quantity, destination, packing preference and trade terms.

What loads can the carrier take?

Service loads above wide spans; gauge selection follows the load calculation per project.

Where is this profile used?

Plant halls, long corridors and ceilings carrying ductwork or equipment.

Request a Project Quotation

Send the required model, specification, color, quantity, destination, packing preference and trade terms to request a written quotation and sample plan.

Description
