OA Network Raised Floor System, Bare Steel Panels with Cable Routing, Office Building Projects
Product Type OA Network Raised Floor
Panel Bare Steel
System Pedestal and Stringer Kit
Use Office Building Cable Routing
Pricing Unit Per sqm
Available Sizes Standard modular sizes
Support Kit Pedestal and stringer list per order
OA Network Raised Floor System, Bare Steel Panels with Cable Routing, Office Building Projects

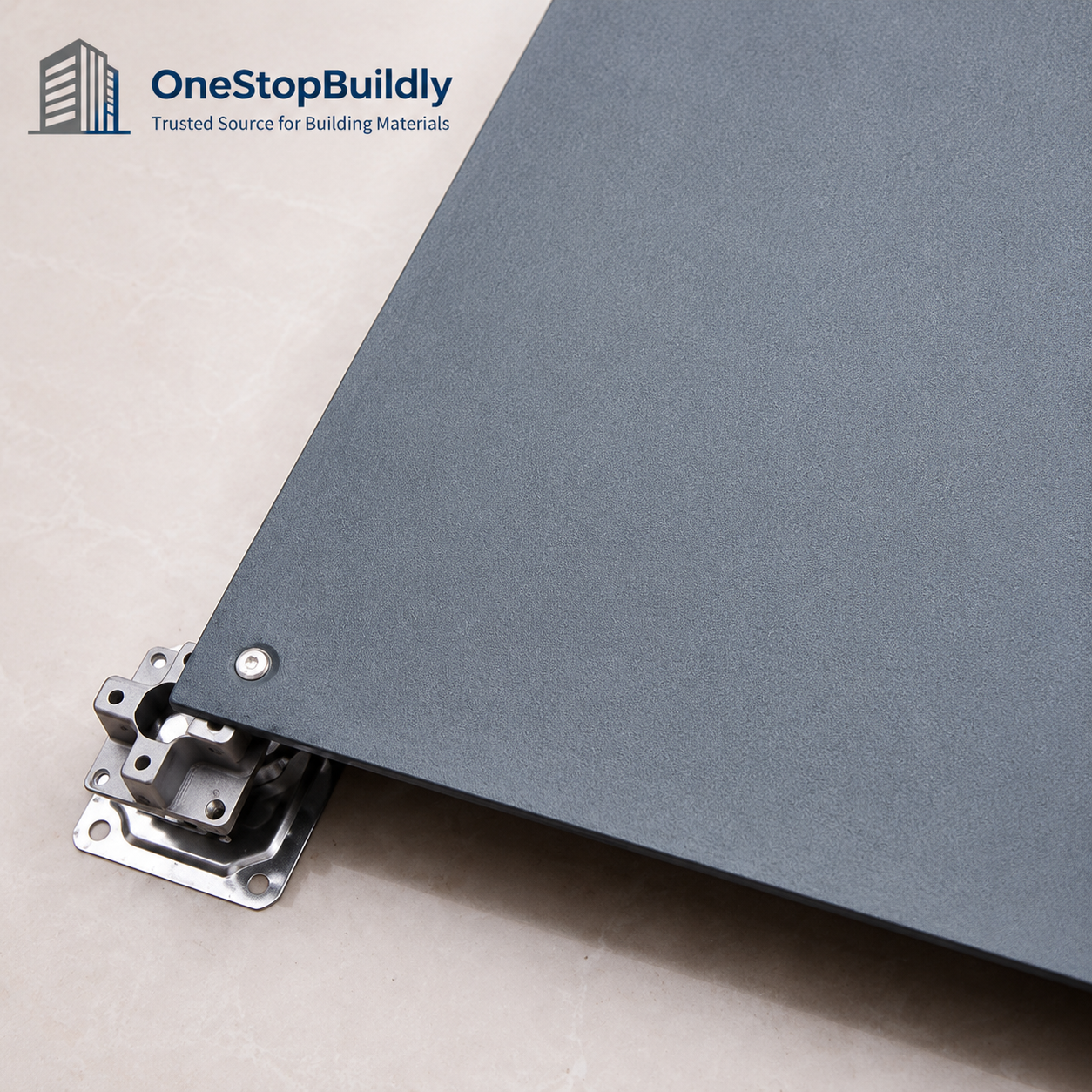

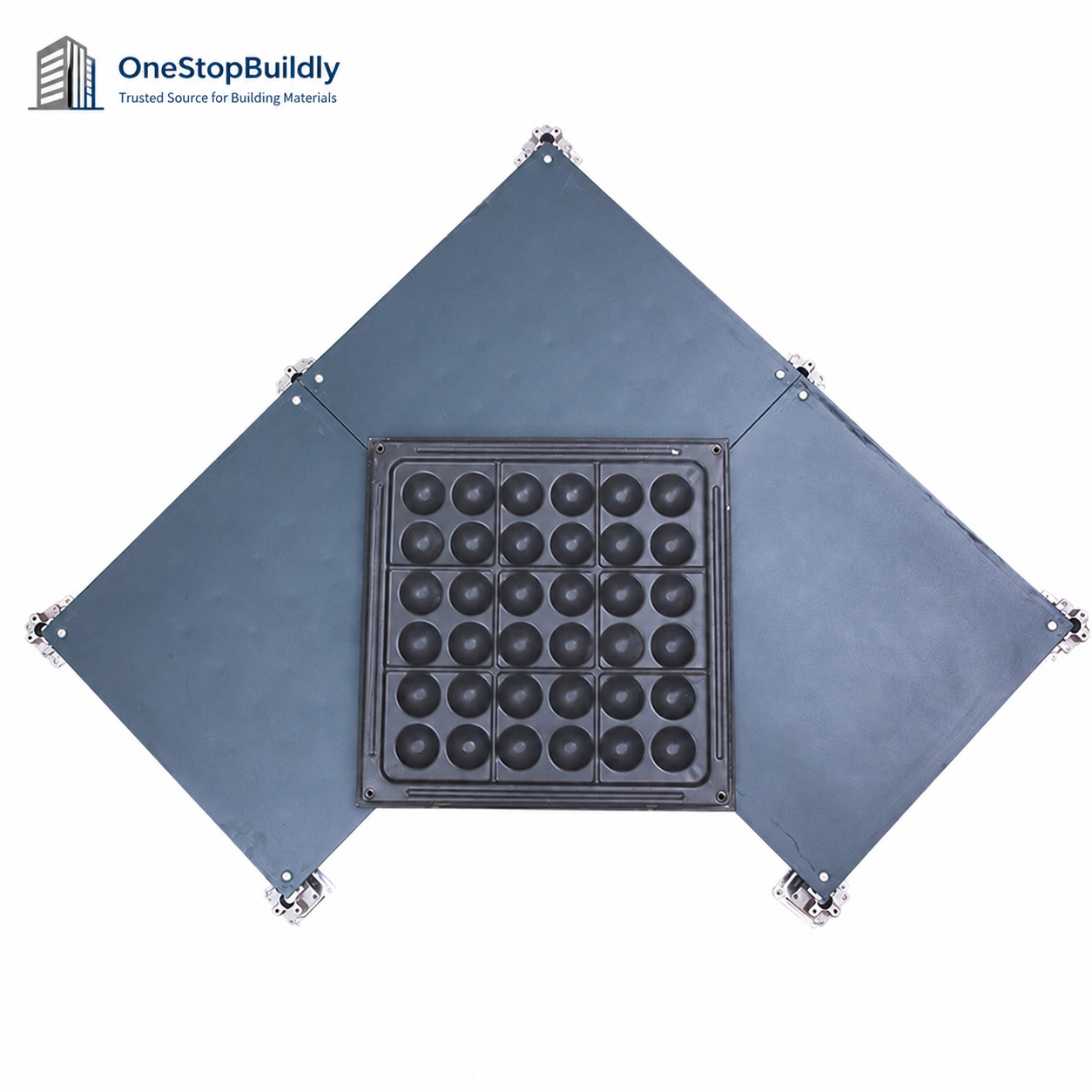

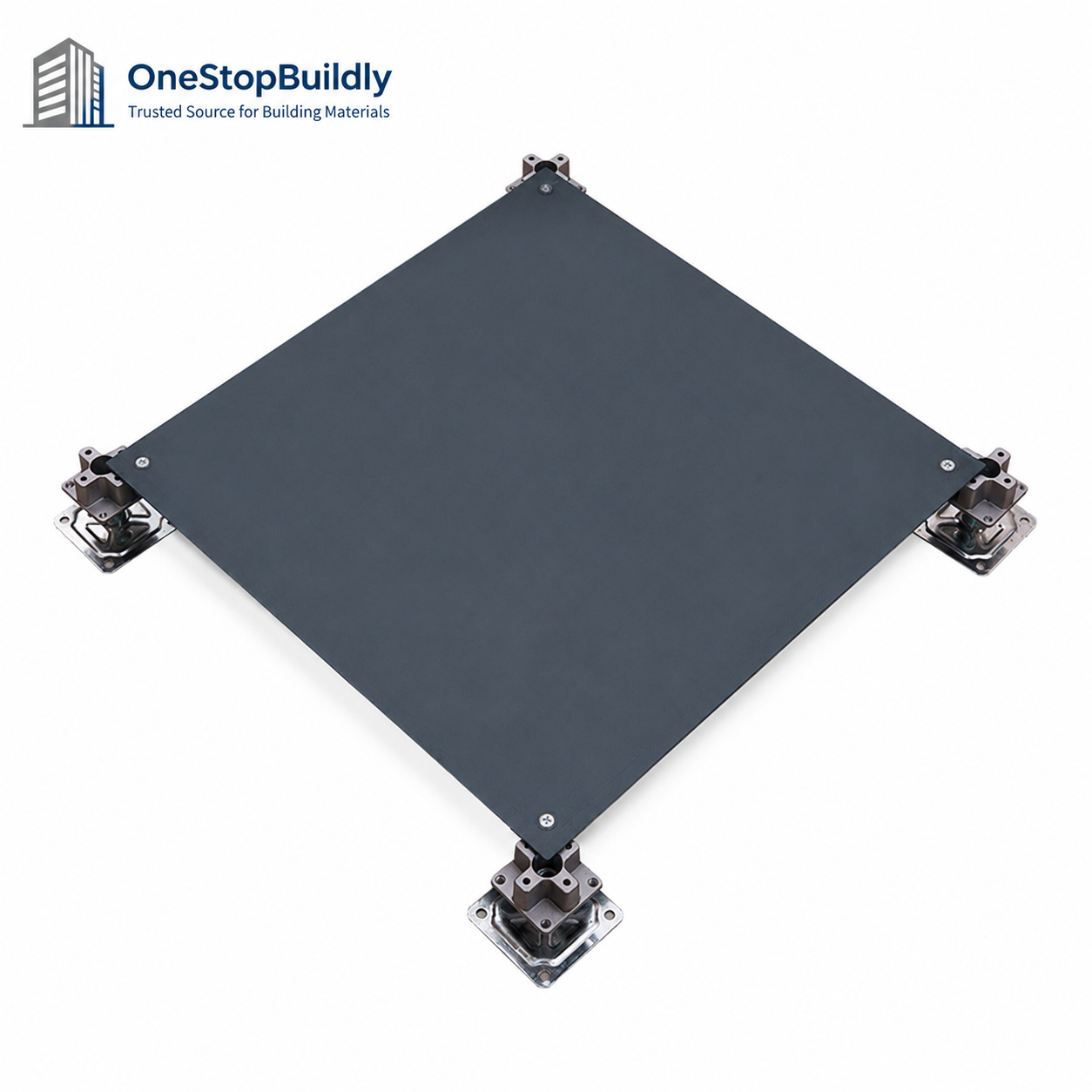

AS-102 is an OA network raised floor system of bare steel panels designed for office building cable routing. The open underfloor cavity handles cable management and equipment access, and panels are ordered together with the pedestal and stringer support kit. It is supplied for office building and fit-out projects.
Key Features
· Bare steel panel construction
· Underfloor cable management cavity
· Pedestal and stringer support system
· Equipment access with liftable panels
· Office building and fit-out supply
Applications
· Office buildings and OA floors requiring cable management and equipment access.
· Data centers, server rooms and monitoring rooms with static-control requirements.
· Laboratories, clean rooms and precision workshops.
Specifications
|
Product SKU |
AS-102 |
|
Product Type |
OA Network Raised Floor |
|
Panel |
Bare Steel |
|
System |
Pedestal and Stringer Kit |
|
Use |
Office Building Cable Routing |
|
Pricing Unit |
Per sqm |
Available Sizes / Colors / Finishes
|
Available Sizes |
Standard modular sizes |
|
Support Kit |
Pedestal and stringer list per order |
Product Family Comparison
|
Attribute |
AS-101 |
AS-103 |
AS-108 |
|
Type |
All-steel PVC-face panel |
Ceramic-face panel |
Calcium-sulfate core panel |
|
Size |
600x600mm |
600x600mm |
600x600mm |
|
Use Case |
Office and OA floors |
Humid machine rooms and labs |
EU-spec office and network rooms |
|
Finish |
PVC anti-static laminate |
Wear-proof ceramic tile |
Edge-trimmed board finish |
Installation
· Confirm the finished floor height, pedestal layout and stringer configuration against the approved drawings.
· Install pedestals, stringers and panels level; check with a laser level during placement.
· Verify anti-static continuity and grounding points after installation and record readings for the project file.
Packaging & Shipping
|
Packing |
Pallet with corner guards |
Customization Options
Support kit composition is configured per order against the project height and load design.
Quality and Compliance
· Applicable certificates and test reports must match the exact model, certificate holder, scope and validity before publication or order release.
· Destination-market requirements for the selected SKU must be reviewed before order release.
FAQ
What information is needed for a quotation?
Provide the required model, specification, color, quantity, destination, packing preference and trade terms.
Does the system include supports?
Pedestals and stringers are ordered together with the panels as a support kit list per project.
What should be checked for network floor projects?
Finished floor height, cable routing layout and equipment access positions against the drawings.
Request a Project Quotation
Send the required model, specification, color, quantity, destination, packing preference and trade terms to request a written quotation and sample plan.
-
