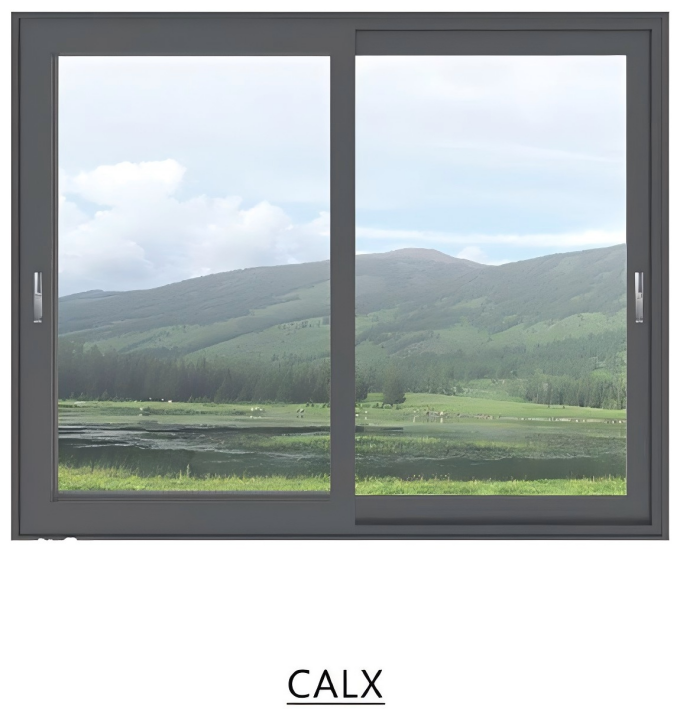

Six-Track Broken Bridge Sliding Window
Key Features
1.Premium Frame Construction
·6063-T5 high-grade aluminum alloy profile
·1.4mm thick outer frame wall for superior wind pressure resistance and structural strength
·Weather-resistant powder coating for enhanced durability and corrosion resistance
2.Advanced Six-Track System
·Smooth, silent sliding operation with single-track double pulley design
·Optimized track layout for enhanced stability and sealing performance
3.Superior Insulation & Protection
·5+12A+5 double-layer hollow tempered glass for excellent thermal insulation and noise reduction
·304 stainless steel gauze for reliable insect protection
·EPDM rubber sealing strips for airtight and watertight performance
4.Effective Drainage & Weatherproofing
·Concealed drainage system prevents rainwater flooding
·Multi-directional pressure lines (arc, hypotenuse, square) enhance overall sealing integrity
5.Aesthetic & Functional Design
·Sleek, modern design complements contemporary interiors
·Low-maintenance construction with easy-to-clean surfaces
Parameters
| Item | Specification |
|---|---|
| Profile Material | 6063-T5 aluminum alloy |
| Frame Wall Thickness | 1.4 mm |
| Track Structure | 6-track design |
| Pulley Type | Single-track double pulley |
| Glass Type | 5+12A+5 double-layer hollow tempered glass |
| Insect Screen | 304 stainless steel mesh |
| Sealing Material | EPDM rubber strip |
| Surface Treatment | Anti-fade powder coating |
| Drainage System | Concealed drainage |
| Sealing Structure | Arc / hypotenuse / square pressure lines |
Details
Description

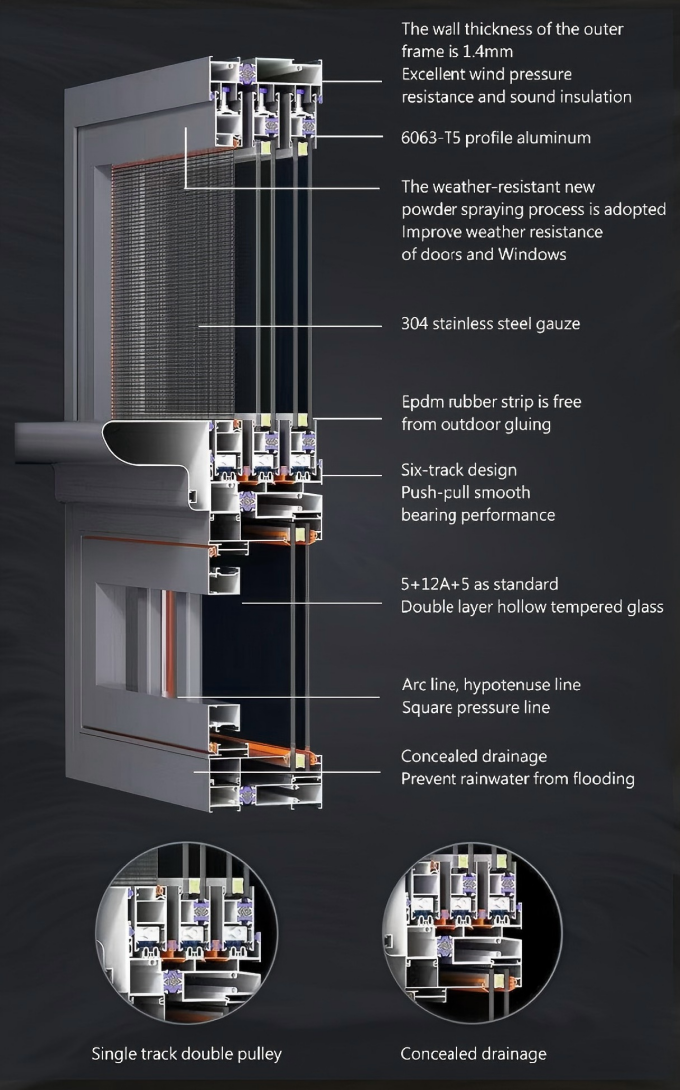

Crafted with precision-engineered 6063-T5 profile aluminum, this sliding window features a six-track structure that ensures smooth, silent operation while enhancing structural stability. The outer frame boasts a 1.4mm wall thickness, significantly boosting wind pressure resistance and sound insulation. A weather-resistant powder coating protects the frame from fading, corrosion, and harsh outdoor elements, ensuring long-lasting performance.
Equipped with 304 stainless steel gauze, the window provides effective insect protection without compromising ventilation. The 5+12A+5 double-layer hollow tempered glass delivers exceptional thermal insulation and noise reduction, creating a quiet, energy-efficient indoor environment. EPDM rubber strips, free from outdoor gluing, ensure a tight seal to prevent air and water infiltration. The concealed drainage system efficiently channels rainwater away, eliminating the risk of flooding. The single-track double pulley design ensures effortless push-pull movement, while the arc, hypotenuse, and square pressure lines further enhance sealing performance and durability.
