85 Non-Broken Bridge Screen Integrated Window Series
Key Features
✅ Cost-Effective Aluminum Construction: 6063-T5 primary aluminum with 1.4mm outer frame wall thickness for reliable structural performance.

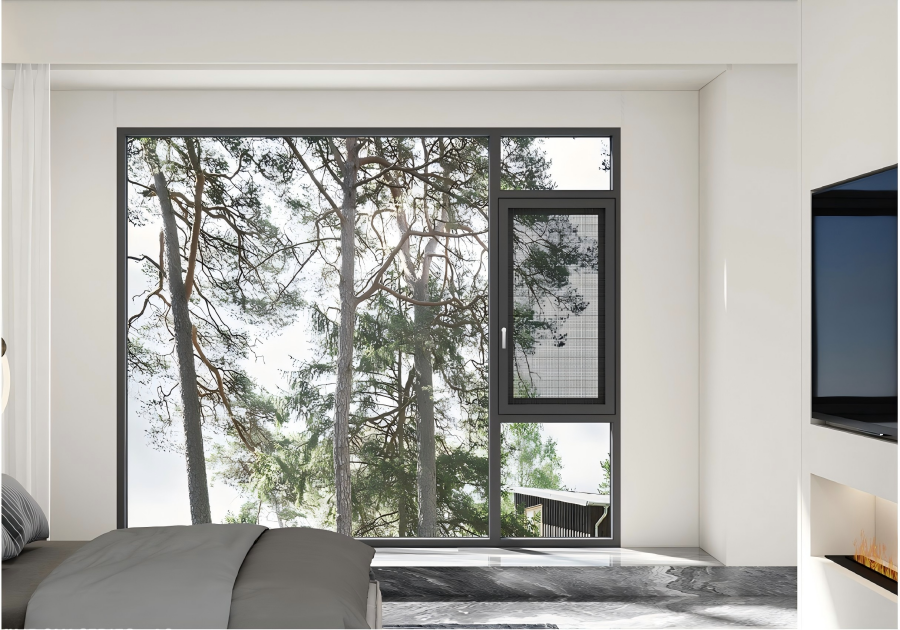

✅ Screen-Integrated Design: Built-in 304 stainless steel gauze combines window and screen for simplified installation and insect protection.
✅ Basic Insulated Glass: Standard 5+9A+5 double-layer hollow tempered glass for thermal insulation and soundproofing.
✅ Practical Sealing & Drainage: Square pressure line, no external glue, and floor drain-style drainage prevent water seepage.
✅ Modern Minimalist Aesthetics: Clean, flat frame design with customizable finishes (Calx, Sand Grain Gray) for contemporary interiors.
✅ User-Friendly Maintenance: Simple structure and integrated components make upkeep straightforward.
Parameters
| Parameter | Specification | ||
|---|---|---|---|
| Series | 85 Non-Broken Bridge Screen Integrated Window Series | ||
| Profile Material | 6063-T5 Primary Aluminum | ||
| Outer Frame Wall Thickness | 1.4mm | ||
| Glass Configuration | Standard 5+9A+5 Double-Layer Hollow Tempered Glass | ||
| Mesh Material | 304 Stainless Steel Gauze | ||
| Air Tightness | Level 3 (LV.3) | ||
| Water Tightness | Level 4 (LV.4) | ||
| Wind Pressure Resistance | Level 5 (LV.5) | ||
| Sound Insulation | Level 4 (LV.4) | ||
| Insulation Property (K-value) | K ≥ 1.5 W/(m²·K) | ||

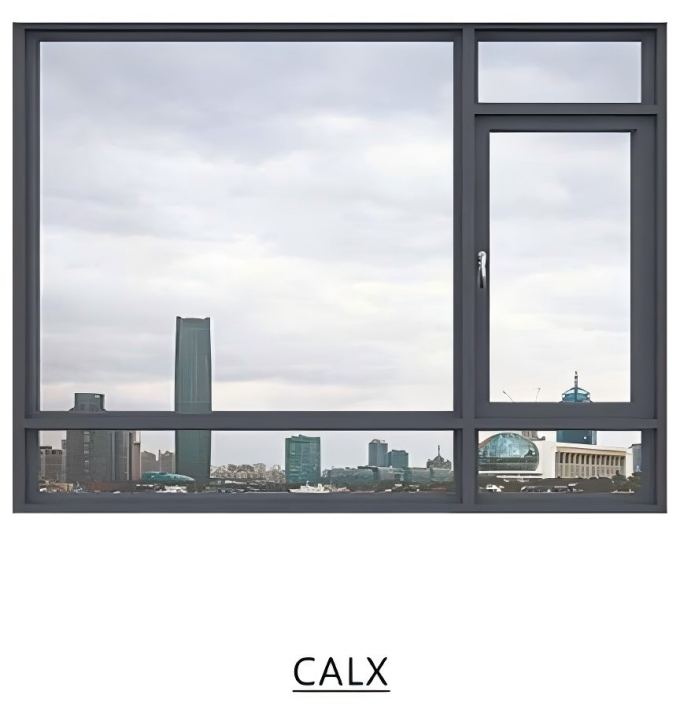

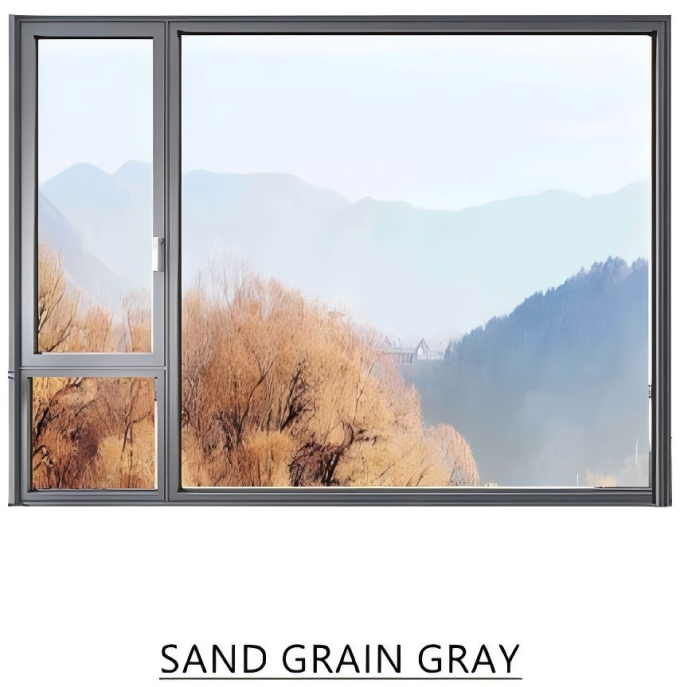

| Available Finishes | Calx, Sand Grain Gray | ||
| Core Design Style | Custom | Minimalist | Light Luxury |
Details
Description

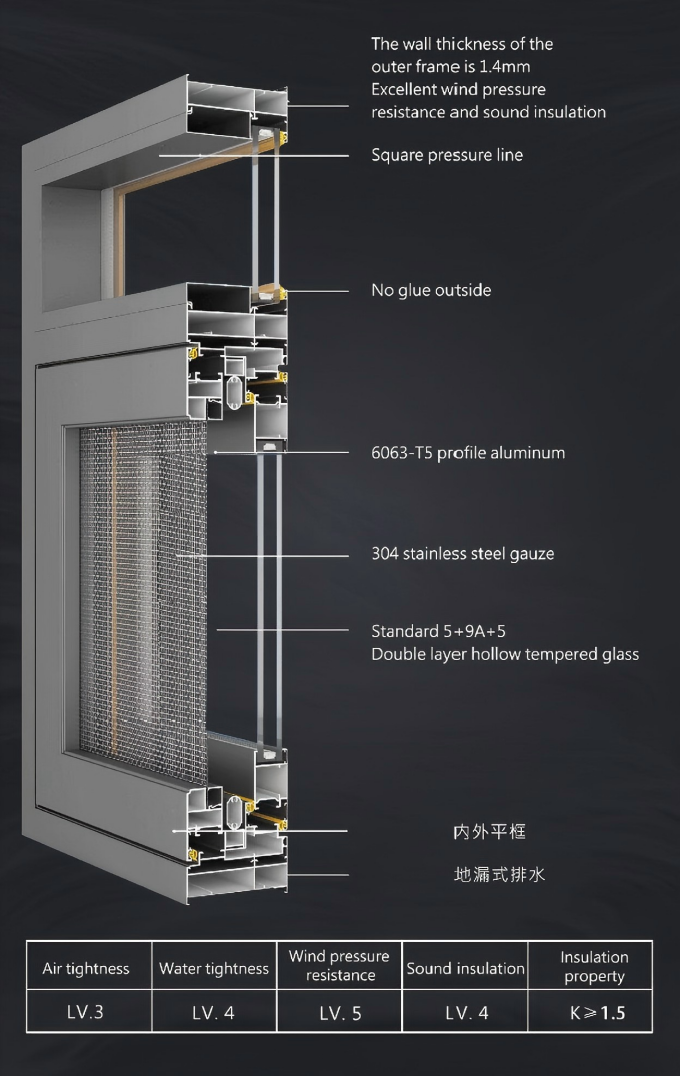

The 85 Non-Broken Bridge System Window is engineered to deliver reliable performance at an accessible price point. Constructed with 6063-T5 primary aluminum profiles and a 1.4mm outer frame wall thickness, it offers solid structural stability and basic wind pressure resistance. The screen-integrated design combines the window frame and 304 stainless steel gauze into one seamless unit, simplifying installation and maintenance.

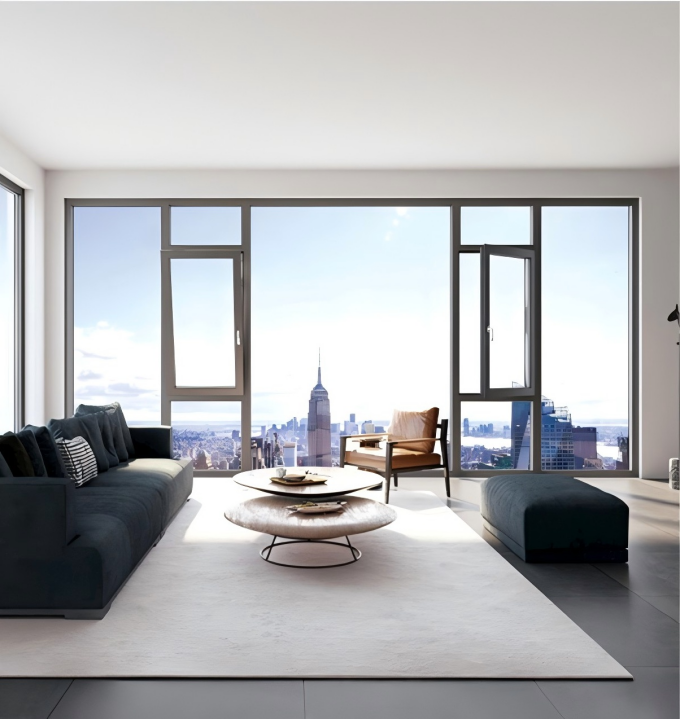

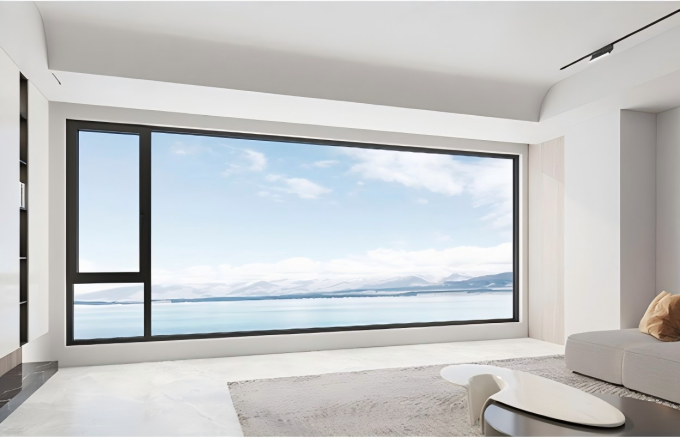

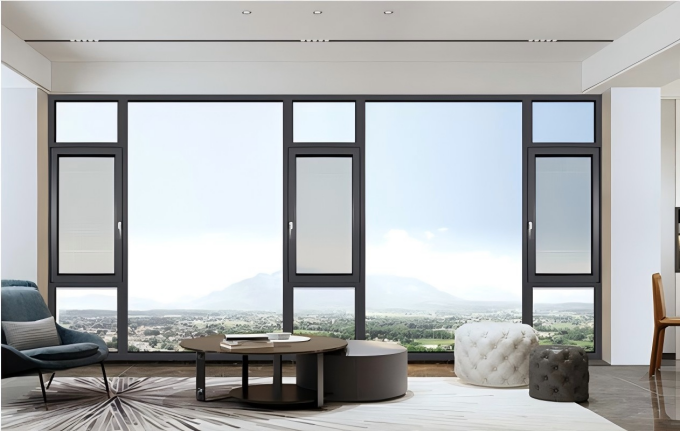

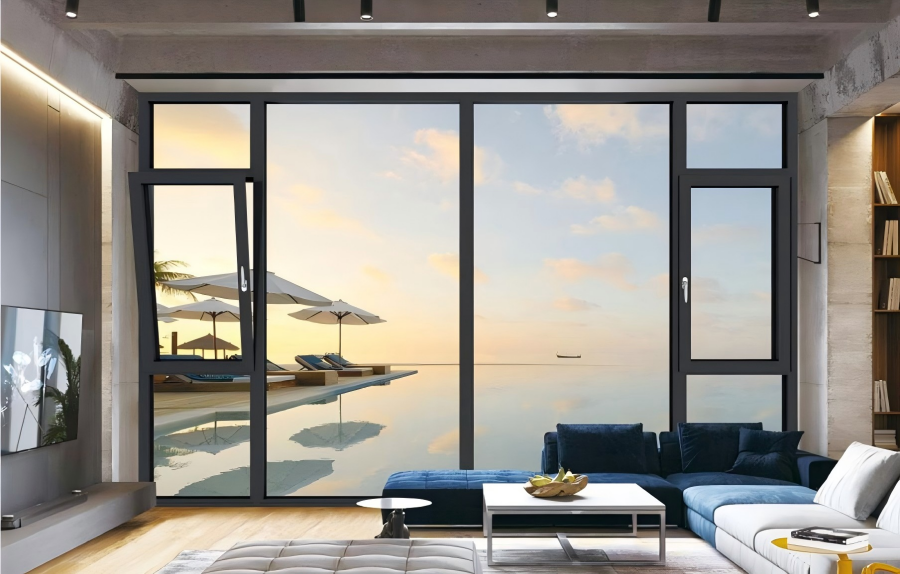

Standard 5+9A+5 double-layer hollow tempered glass provides basic thermal insulation and soundproofing, while the square pressure line and no-external-glue design enhance airtightness and prevent water seepage. With a flat inner/outer frame and floor drain-style drainage system, it ensures effective water management. Available in finishes like Calx and Sand Grain Gray, this window blends clean lines with functional design, suitable for apartments, townhouses, and light commercial spaces.
