Broken Bridge System Window

This Broken Bridge Window is a high-performance, customizable aluminum window solution built for modern, minimalist light-luxury spaces. Designed with 2.0mm thick 6063-T5 primary aluminum profiles and advanced broken bridge thermal break technology, it delivers superior structural strength, energy efficiency, and weather resistance. Available in multiple finishes and configurations , it combines sleek aesthetics with robust functionality to elevate both residential and commercial projects.
Add to quote
낙Add to cart
Quantity： ꄷ ꄸ

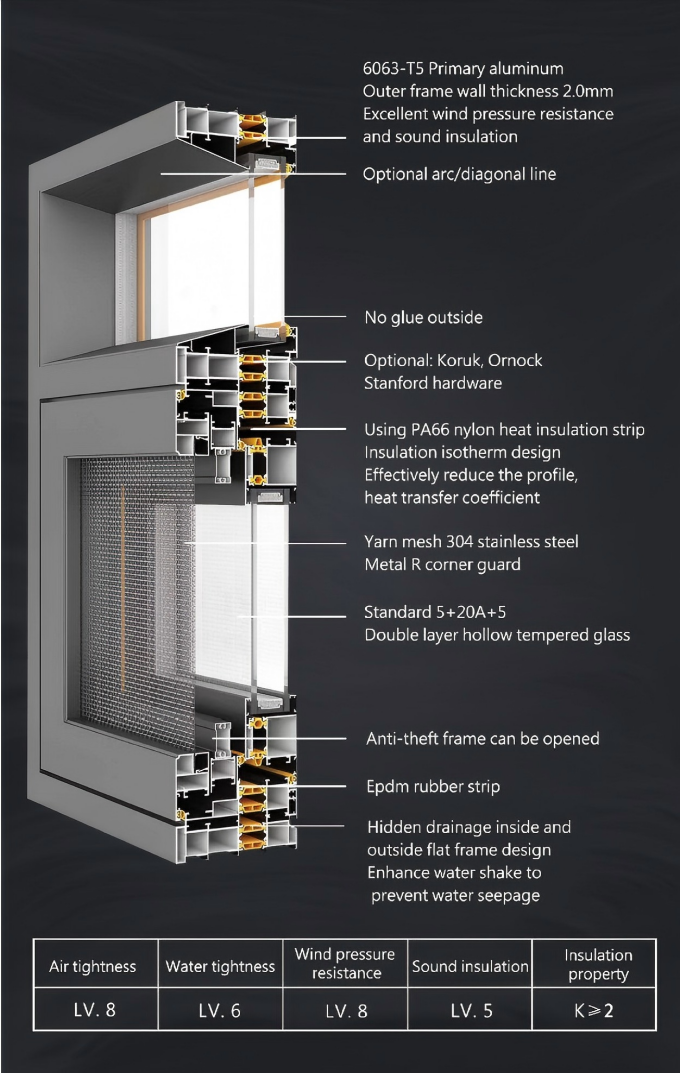

Key Features
✅ Heavy-Duty Aluminum Construction: 6063-T5 primary aluminum with 2.0mm outer frame wall thickness for enhanced structural integrity and wind pressure resistance.
✅ Broken Bridge Thermal Break Technology: PA66 nylon heat insulation strip reduces heat transfer coefficient, boosting energy efficiency.
✅ Premium Insulated Glass: Standard 5+20A+5 double-layer hollow tempered glass for superior thermal and acoustic performance.
✅ Advanced Sealing & Drainage: Hidden drainage system, EPDM rubber strips, and no external glue prevent water seepage and ensure airtightness.
✅ Enhanced Security: Openable anti-theft frame with 304 stainless steel yarn mesh and metal R corner guards for safety and durability.
✅ Customizable Aesthetics & Hardware: Optional arc/diagonal line profiles, multiple hardware choices, and versatile finishes to match any design style.
✅ Minimalist Light-Luxury Design: Clean lines and modern configurations blend seamlessly with contemporary interior and exterior spaces.
Parameters

Parameter Specification
Series 113 Zhen Pin (Screening 113) System Window Series
Profile Material 6063-T5 Primary Aluminum
Outer Frame Wall Thickness 2.0mm
Thermal Break Strip PA66 Nylon Heat Insulation Strip
Glass Configuration Standard 5+20A+5 Double-Layer Hollow Tempered Glass
Mesh Material 304 Stainless Steel Yarn Mesh
Hardware Options Koruk / Ornock / Stanford (Optional)
Air Tightness Level 8 (LV.8)
Water Tightness Level 6 (LV.6)
Wind Pressure Resistance Level 8 (LV.8)
Sound Insulation Level 5 (LV.5)
Insulation Property (K-value) K ≥ 2 W/(m²·K)

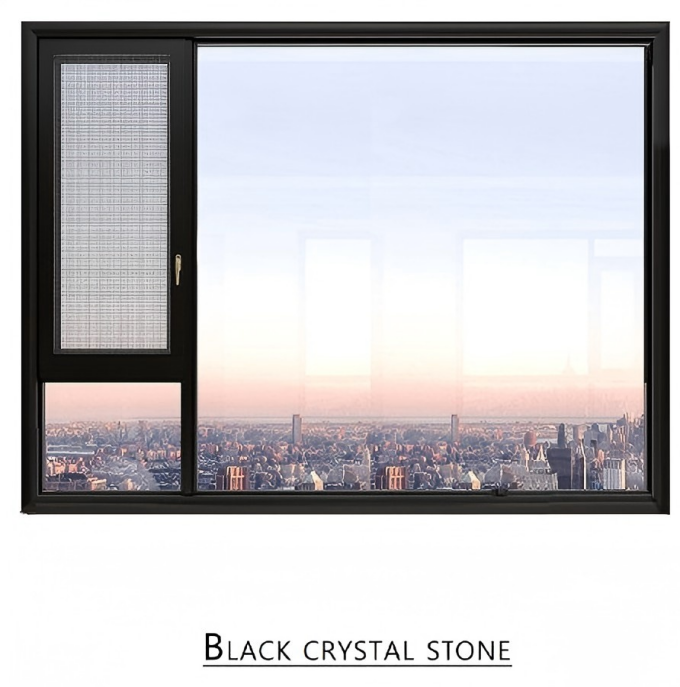

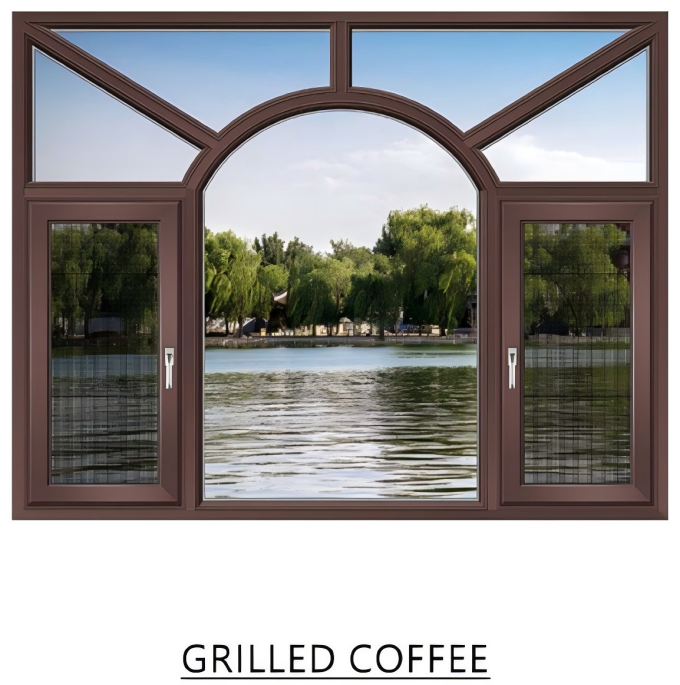

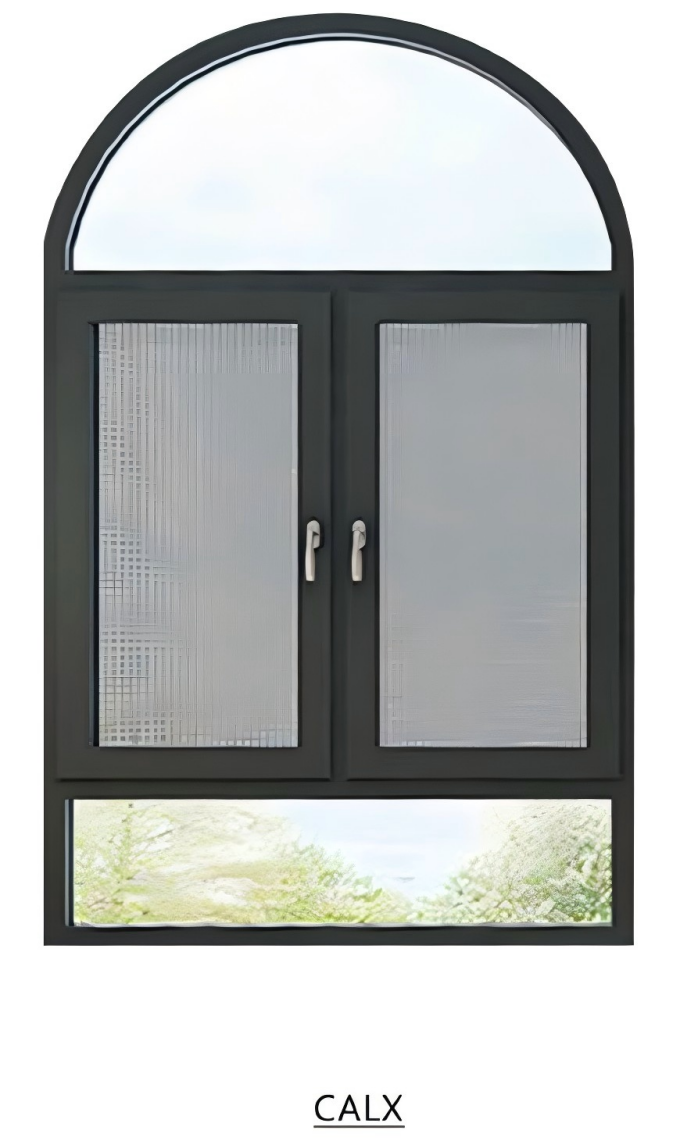

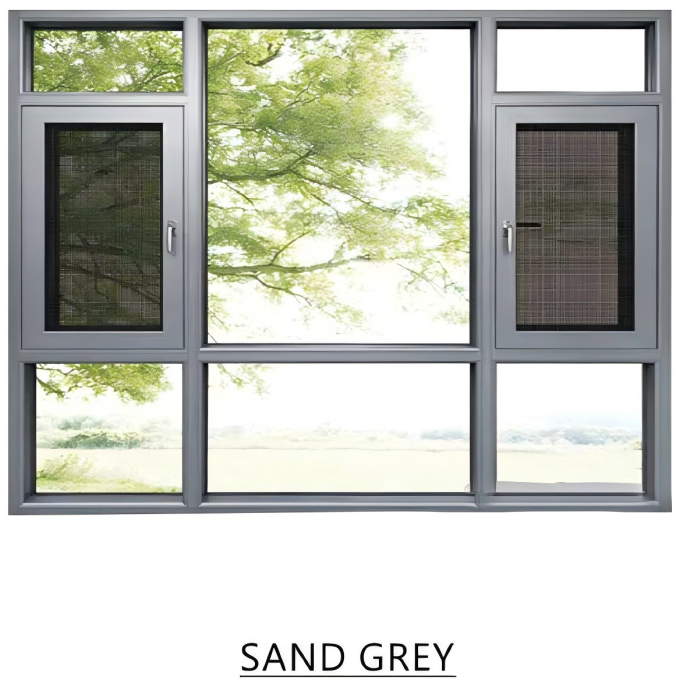

Available Finishes Black Crystal Stone, Calx, Grilled Coffee, Sand Grey
Core Design Style Custom Minimalist Light Luxury

Details

Description
  The 113 Zhen Pin System Window is engineered to balance bold design with premium performance. Built on a 113mm profile platform with a reinforced 2.0mm outer frame wall thickness, it offers exceptional wind pressure resistance and structural stability—ideal for high-rise and coastal environments. The broken bridge thermal break design, paired with a PA66 nylon insulation strip, disrupts heat transfer, significantly improving energy efficiency and reducing heating/cooling costs.
  Standard 5+20A+5 double-layer hollow tempered glass provides excellent thermal insulation and soundproofing, while the integrated 304 stainless steel yarn mesh enhances security and insect protection. The system features a hidden drainage design and EPDM rubber seals to prevent water seepage, ensuring long-term durability. With customizable hardware (Koruk/Ornock/Stanford options), profile details (arc/diagonal line accents), and finishes (Black Crystal Stone, Calx, Grilled Coffee, Sand Grey), it adapts seamlessly to diverse architectural styles, from urban lofts to beachfront homes.
