Dooya Motorized Curtain System Components

Elevate any residential or commercial space with the Dooya Motorized Drapery System, a comprehensive, modular solution for smart curtain automation. Engineered for precision, durability, and quiet operation, this system includes premium aluminum tracks, high-performance drive boxes, specialized carriers, and smooth-gliding runners, supporting a wide range of curtain styles including ripple fold designs.
Add to quote
ꁆ ꁇ
낙Add to cart
Quantity： ꄷ ꄸ

Detailed Parameters & Descriptions

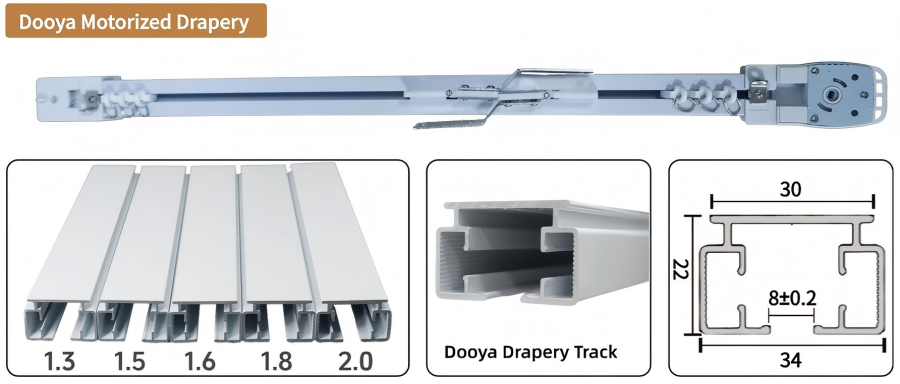

1. Dooya Motorized Drapery Track
Material: High-grade aluminum alloy
Cross-section dimensions: 34mm (W) × 22mm (H), internal slot width: 8±0.2mm
Available thicknesses: 1.3mm / 1.5mm / 1.6mm / 1.8mm / 2.0mm
Features: Anti-corrosion finish, low-friction internal channel, compatible with Dooya drive systems

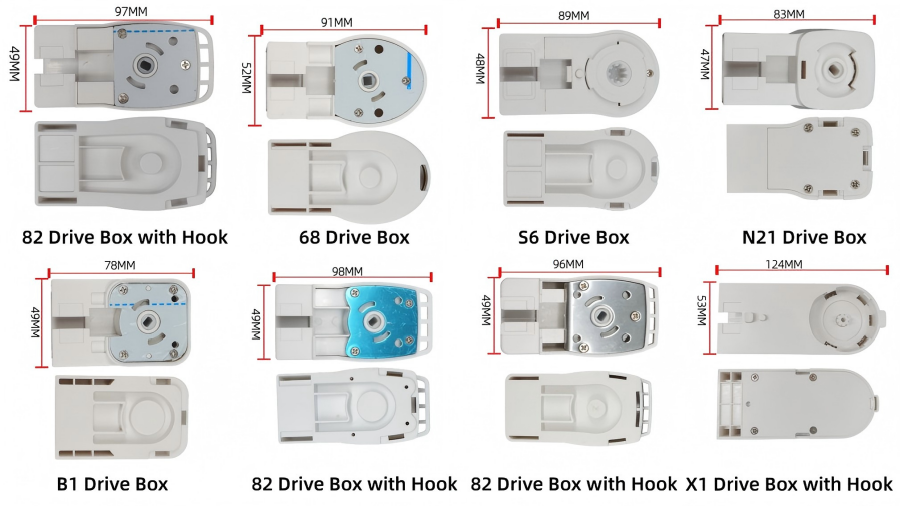

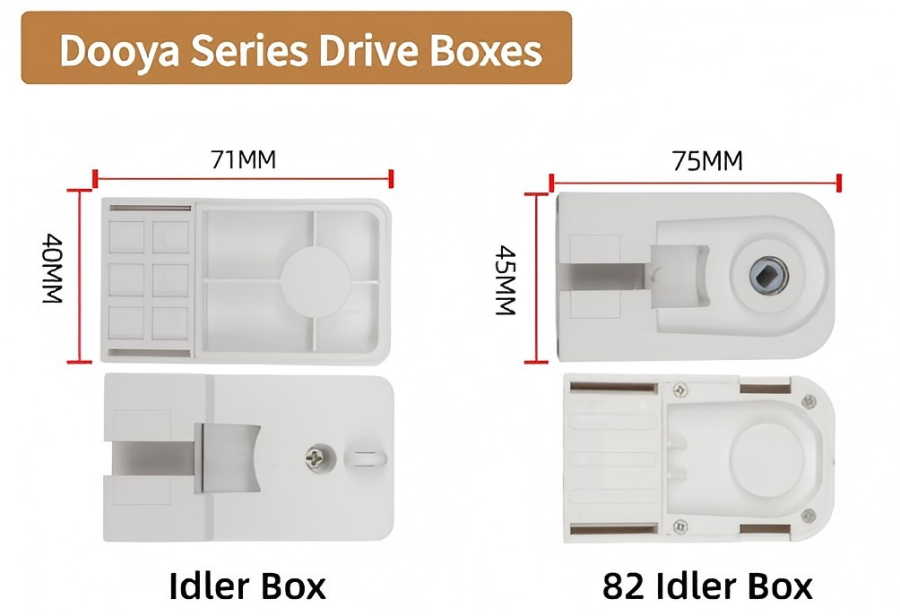

2. Dooya Series Drive Boxes (End Units)

Model Dimensions (L×W×H) Features
Idler Box 71×40×40mm Passive end unit, tensioning support
82 Idler Box 75×45×45mm Reinforced passive end unit
82 Drive Box with Hook 97×49×53mm Active drive unit with curtain hook
68 Drive Box 91×49×53mm Compact active drive unit
S6 Drive Box 69×49×49mm Miniature drive unit for slim tracks
N21 Drive Box 83×49×49mm Light-duty drive unit
B1 Drive Box 78×49×49mm Basic drive unit
82 Drive Box with Hook (Blue) 98×49×49mm High-torque drive unit
82 Drive Box with Hook X1 96×49×49mm Enhanced drive unit
Drive Box with Hook 124×35×35mm Extended-length drive unit

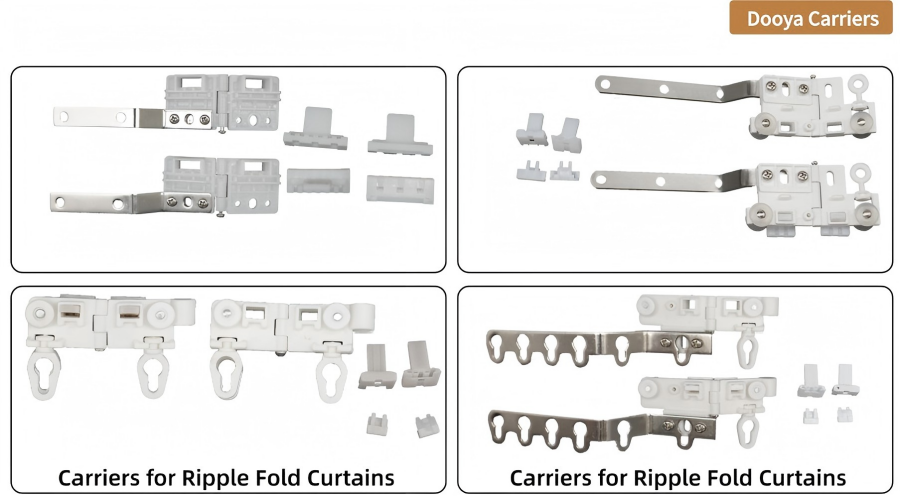

3. Dooya Carriers (Master Carriers & Accessories)
Standard Master Carriers: Heavy-duty metal/plastic construction, for smooth belt-driven movement.
Ripple Fold Curtain Carriers: Specially designed with multi-point connection plates, enabling uniform, pleated curtain folds.
Features: Interchangeable adapters for different track profiles, easy installation.

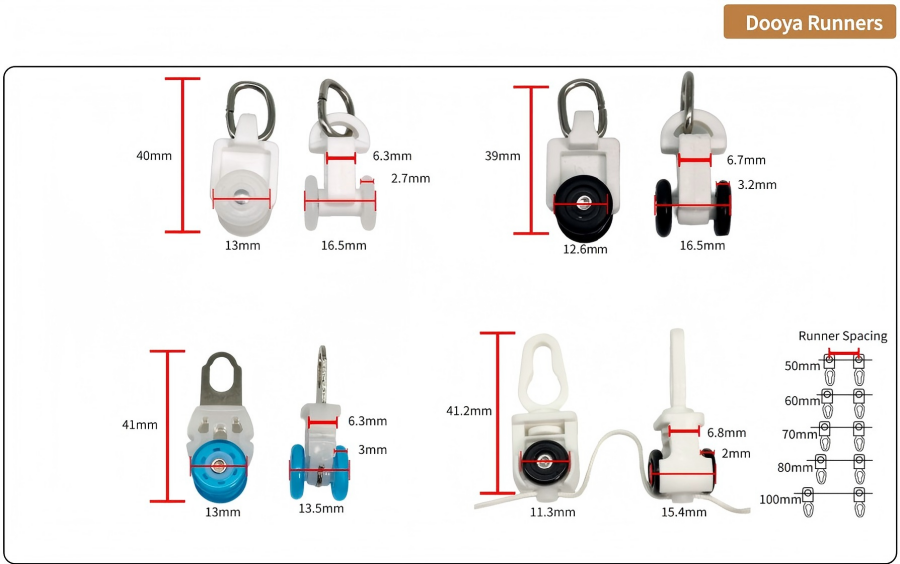

4. Dooya Runners (Sliders)

Runner Type Dimensions (H×W) Wheel Size Runner Spacing Options
Standard Plastic Runner 40×13mm 6.3×2.7mm -
Black Wheel Runner 39×12.6mm 6.7×3.2mm -
Blue Wheel Runner 41×13mm 6.3×3.0mm -
Reinforced Runner 41.2×11.3mm 6.8×2.1mm 50/60/70/80/100mm

Features: Low-noise wheels, smooth sliding, customizable spacing for different curtain weights and styles.

*Details

Key Advantages

✅ Modular Design: Interchangeable components for flexible system configuration
✅ Durable Construction: Aluminum tracks and high-strength plastic/metal parts
✅ Quiet Operation: Precision-engineered runners and carriers minimize noise
✅ Versatile Compatibility: Supports ripple fold, standard, and custom curtain styles
✅ Easy Installation: All components are designed for quick, hassle-free assembly
