Trietex Motorized Drapery System

The Trietex Motorized Drapery System is a comprehensive collection of components for automated curtain applications, including precision-extruded aluminum tracks, compatible drive boxes, and sliding carriers. Designed for seamless integration with popular motor brands like Dooya, this system ensures quiet, reliable operation, smooth fabric movement, and versatile compatibility with both residential and commercial curtain setups.

Inquire Now

ꁆ ꁇ

Product Description

The Trietex Motorized Drapery System is engineered for versatility and performance, making it ideal for both new installations and retrofits:

Precision-Engineered Track: The 32×26mm aluminum track features smooth internal channels for quiet, low-friction carrier movement, even with heavy curtain fabrics.
Wide Motor Compatibility: A full range of drive boxes is available to work with popular Dooya motor models (DT98, DT52, DT320, DT10), ensuring seamless integration with existing or new motor systems.
Versatile Carrier Options: Multiple carrier styles (standard, metal arm, hooked, wheeled) accommodate different fabric weights and installation needs, from light sheer curtains to heavy blackout drapes.
Durable Construction: Drive boxes and carriers are made from high-quality ABS plastic with reinforced metal components, ensuring long-term reliability in high-use environments.
Easy Installation: Modular design allows for quick assembly, with recessed and standard drive box options to suit different mounting configurations.

All components are designed to work together seamlessly, providing a complete solution for automated curtain control in residential and commercial spaces.

*Product Parameters

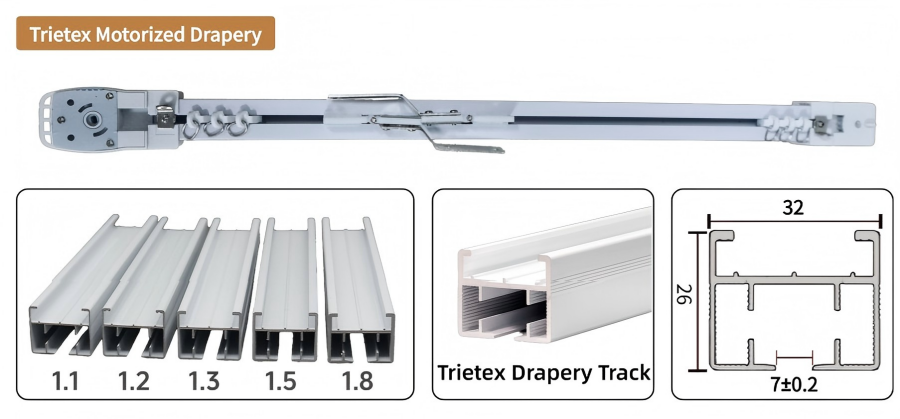

Trietex Drapery Track

Item	Specification
Cross-section Dimensions	32 × 26 mm (±0.2mm tolerance)
Compatible Carriers	1.1 / 1.2 / 1.3 / 1.5 / 1.8 carriers
Material	6063-T5 Extruded Aluminum Alloy
Standard Length	5.8m / 6.0m (custom lengths available)
Wall Thickness	1.0mm (customizable)

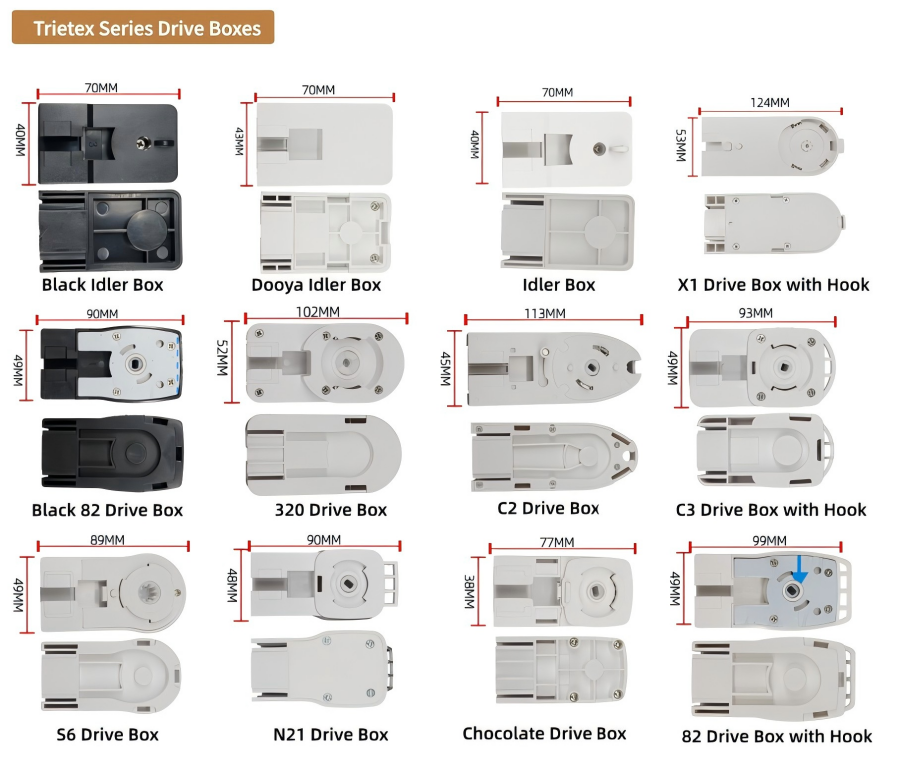

Trietex Series Drive Boxes (Left Side)

Model	Dimensions (L × W, mm)	Compatibility
Black Idler Box	70 × 40	Idler end for tensioning
Dooya Idler Box	70 × 40	Compatible with Dooya motors
Idler Box	70 × 40	Standard idler end
X1 Drive Box with Hook	124 × 45	Motor drive end with hook
Black 82 Drive Box	90 × 49	Black motor drive end
320 Drive Box	102 × 45	For Dooya DT320 motors
C2 Drive Box	113 × 45	Standard motor drive end
C3 Drive Box with Hook	93 × 45	Motor drive end with hook
S6 Drive Box	89 × 49	Slimline motor drive end
N21 Drive Box	90 × 48	Standard motor drive end
Chocolate Drive Box	77 × 48	Compact motor drive end
82 Drive Box with Hook	99 × 48	Universal motor drive end with hook

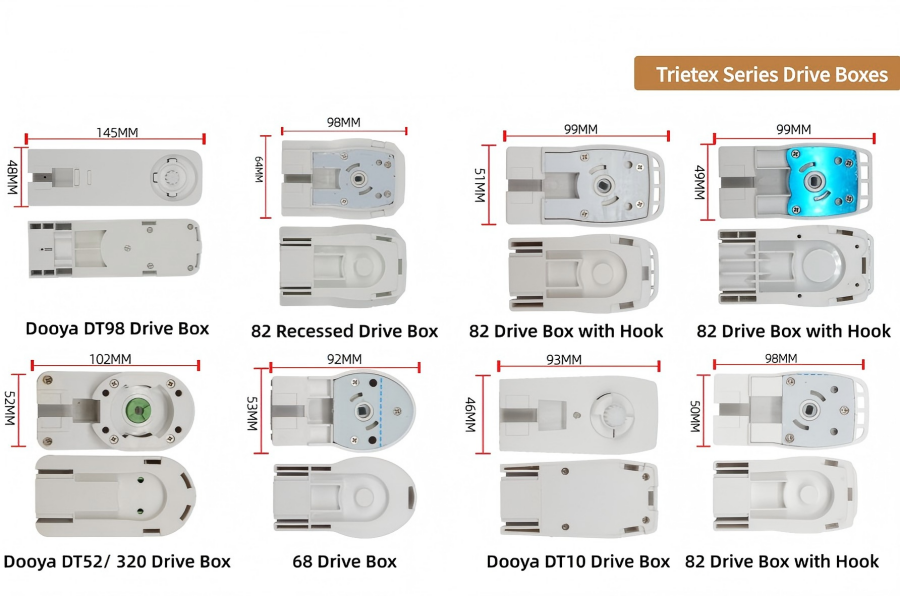

Trietex Series Drive Boxes (Right Side)

Model	Dimensions (L × W, mm)	Compatibility
Dooya DT98 Drive Box	145 × 48	Compatible with Dooya DT98 motors
82 Recessed Drive Box	98 × 49	Recessed installation motor end
82 Drive Box with Hook	99 × 49	Motor drive end with hook
Dooya DT52/320 Drive Box	102 × 45	Compatible with Dooya DT52/320 motors
68 Drive Box	92 × 45	Slimline motor drive end
Dooya DT10 Drive Box	93 × 46	Compatible with Dooya DT10 motors
82 Drive Box with Hook	98 × 45	Universal motor drive end with hook

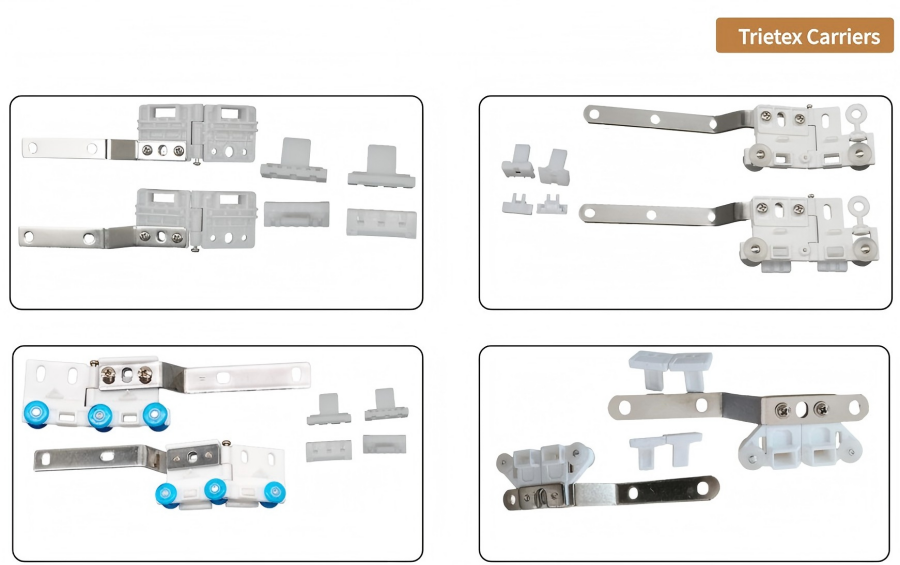

Trietex Carriers

Carrier Type	Design Features	Compatibility
Standard Plastic Carriers	Smooth sliding design, multiple sizes (1.1/1.2/1.3/1.5/1.8)	All Trietex tracks
Metal Arm Carriers	Reinforced metal arms, single/double-wheel options	Heavy fabrics, wide curtains
Hooked Carriers	Integrated hooks for direct fabric attachment	Light to medium-weight fabrics
Wheel Carriers	Dual-wheel design for ultra-smooth movement	Large/heavy curtains, motorized systems

General Specifications

Parameter	Details
Material	6063-T5 Aluminum Alloy (tracks) / ABS/Plastic + Metal (drive boxes & carriers)
Surface Treatment	Matte powder coating (anti-scratch, easy-clean)
MOQ	1,000 meters (tracks) / 500 sets (drive boxes/carriers)
Packaging	PET film + foam protection + export carton
Compatibility	Dooya motors, standard motorized curtain systems, manual curtain setups
