Heavy-Duty Aluminum Bottom Rails
✨ Key Design & Functional Highlights
Multi-Profile Versatility: The series features 7 distinct cross-sectional shapes, from heavy-duty multi-chamber designs to slim, rounded, and boat-shaped profiles, catering to light, medium, and heavy fabric weights.
Durable Construction: Extruded 6063-T5 aluminum ensures corrosion resistance, structural rigidity, and long-term performance, even in high-humidity environments.
Premium Finish: Matte powder coating provides a scratch-resistant, easy-to-clean surface that resists dust buildup, ideal for busy households or commercial spaces.
Color Customization: Available in standard neutral tones (white, gray, beige, brown, light blue), with bulk color customization offered for large orders to match any interior palette.
Fabric Protection: Smooth, rounded edges prevent snags or fraying, while precision-engineered channels securely hold fabric in place to eliminate sagging.
📋 Profile Breakdown
| Profile Type | Best For | Core Benefits |
|---|---|---|
| Heavy-Duty (SY-F6001-1/2) | Large/heavy blackout fabrics, commercial blinds | Reinforced multi-chamber design, enhanced weight capacity, minimal sagging. |
| Slim Flat (SY-F6001-3/5) | Light-filtering fabrics, minimalistic designs | Low-profile aesthetic, lightweight, seamless integration with narrow windows. |
| Decorative Shaped (SY-F6001-4/Boat-Shaped) | Modern interiors, premium residential projects | Soft rounded edges, unique silhouettes for an elevated, contemporary look. |
| Compact Windows Style | Small windows, space-saving installations | Ultra-narrow profile, ideal for tight spaces without compromising stability. |
🛠️ Applications & Compatibility
The SY-F6001 Series is fully compatible with standard roller blind, zebra blind, and dual-layer window treatment systems. Whether you’re designing sleek residential roller shades or heavy-duty commercial blackout blinds, these rails provide the perfect balance of function and style, ensuring smooth operation and a clean, finished look for any window.
Details
Full Parameter Table
| Model | Product Name | Cross-section Dimensions (W × H, mm) | Key Features | Material | Color Options |
|---|---|---|---|---|---|

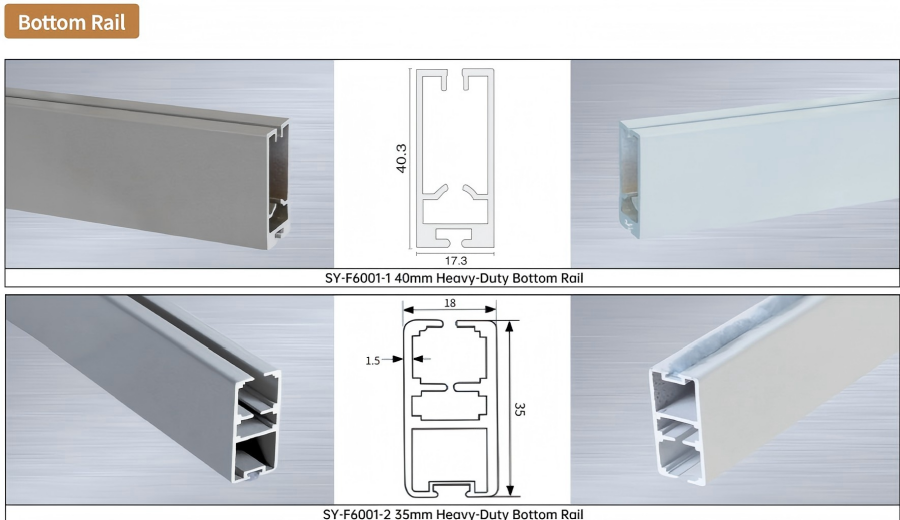

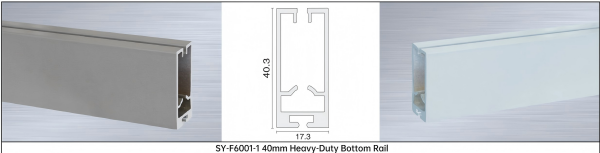

| SY-F6001-1 | 40mm Heavy-Duty Bottom Rail | 17.3 × 40.3 | Double-channel design for heavy fabrics, reinforced structure | 6063-T5 Aluminum Alloy | Gray, White, custom bulk colors |

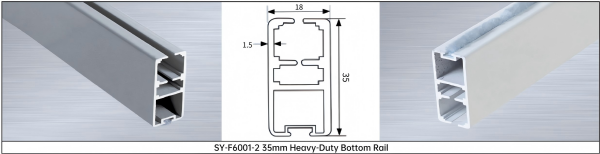

| SY-F6001-2 | 35mm Heavy-Duty Bottom Rail | 18 × 35 (1.5mm wall thickness) | Reinforced multi-chamber profile, extra weight capacity | 6063-T5 Aluminum Alloy | Gray, White, custom bulk colors |

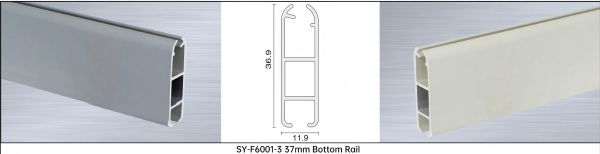

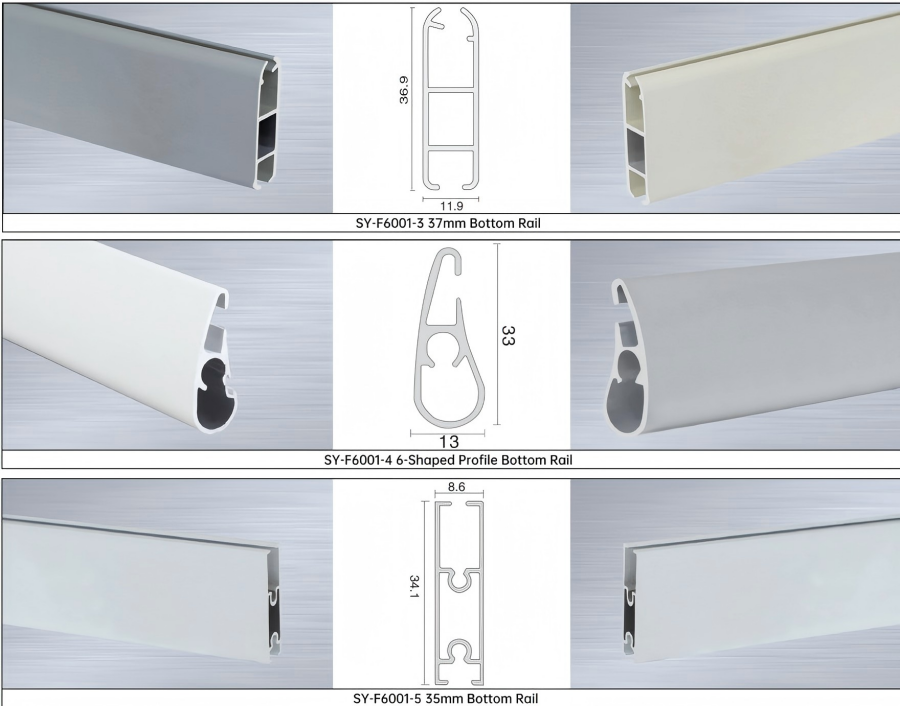

| SY-F6001-3 | 37mm Bottom Rail | 11.9 × 38.6 | Slim single-channel profile, lightweight for standard fabrics | 6063-T5 Aluminum Alloy | Gray, Beige, custom bulk colors |

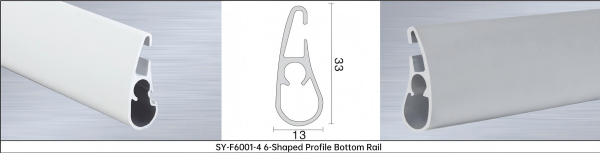

| SY-F6001-4 | 6-Shaped Profile Bottom Rail | 13 × 33 | Curved "6" shape, soft rounded edge, ideal for modern designs | 6063-T5 Aluminum Alloy | White, custom bulk colors |

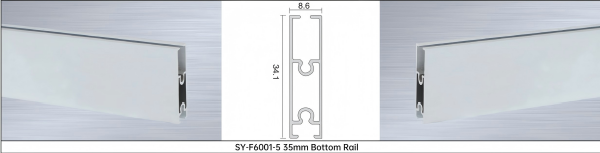

| SY-F6001-5 | 35mm Bottom Rail | 8.6 × 34.1 | Ultra-slim flat profile, minimalistic aesthetic | 6063-T5 Aluminum Alloy | White, custom bulk colors |

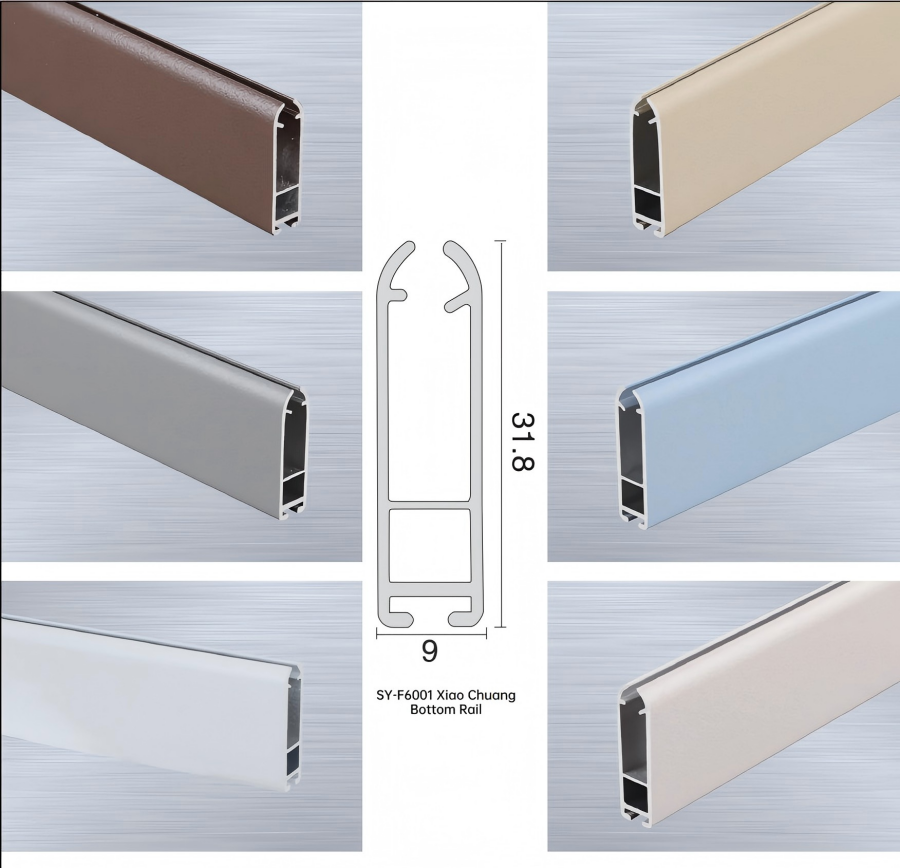

| SY-F6001 | Compact/Small window Bottom Rail | 9 × 31.8 | Narrow U-shaped design, compact for small window applications | 6063-T5 Aluminum Alloy | Brown, Gray, Light Blue, Beige, White, custom bulk colors |

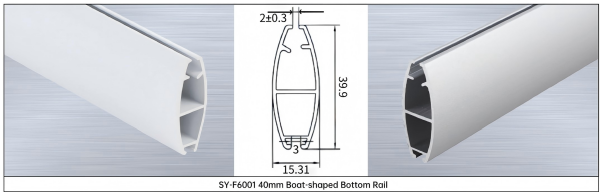

| SY-F6001 | 40mm Boat-shaped Bottom Rail | 15.31 × 39.9 (2±0.3mm) | Curved boat profile, rounded edges for premium look | 6063-T5 Aluminum Alloy | White, custom bulk colors |
