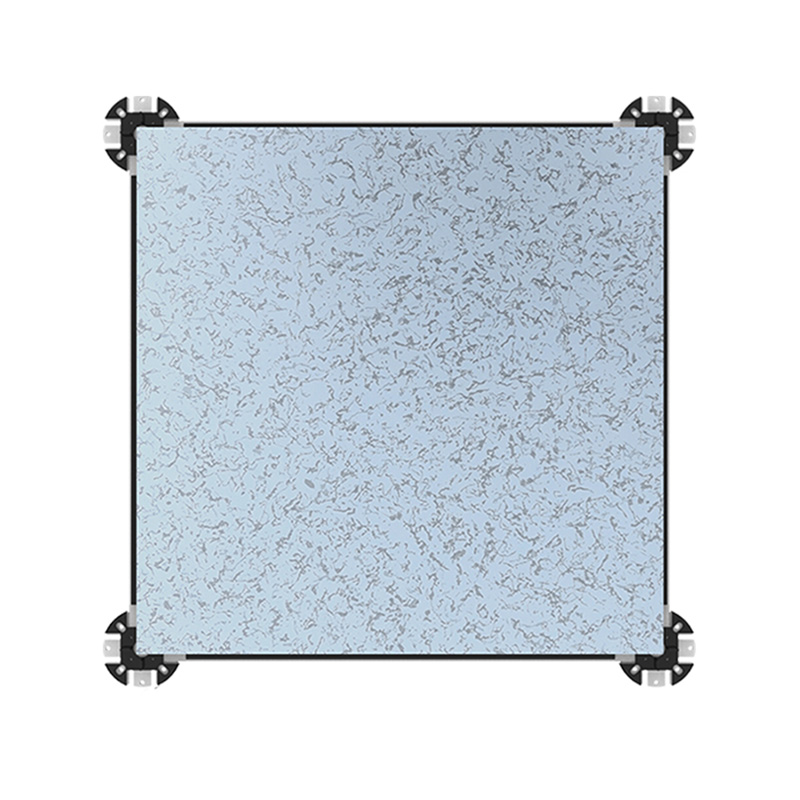

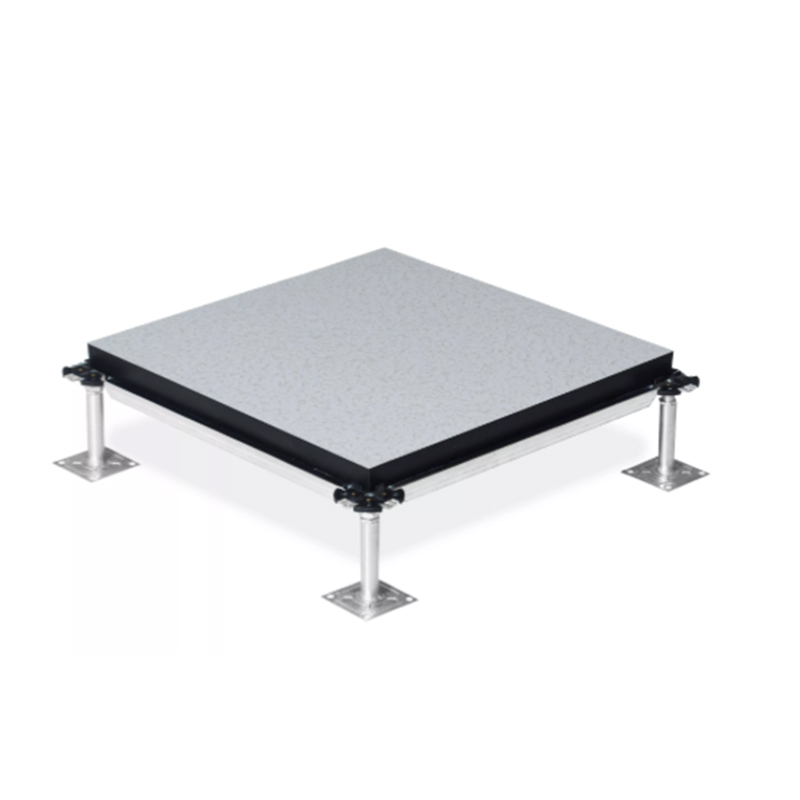

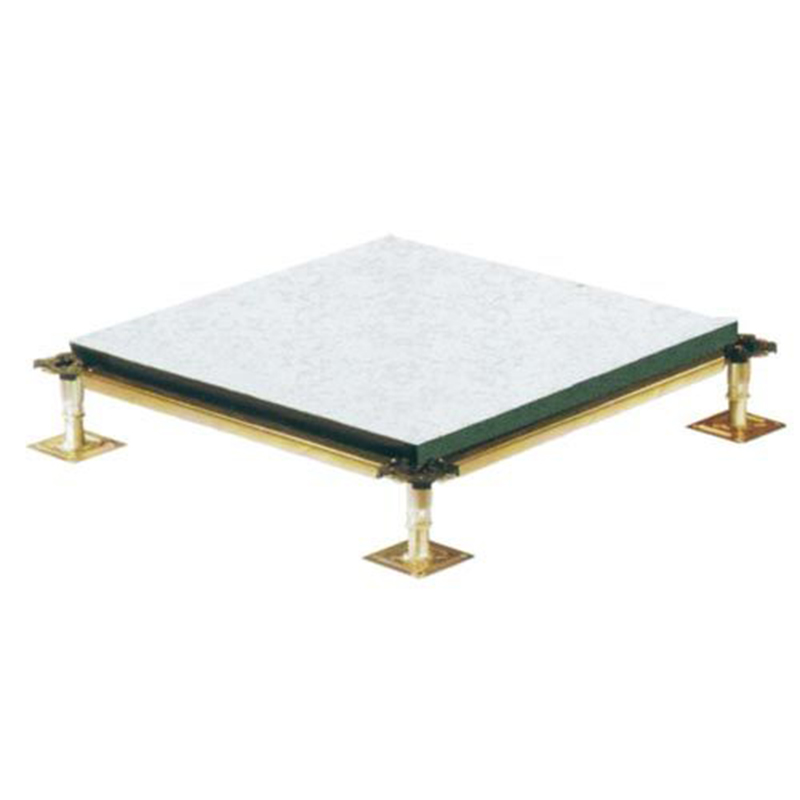

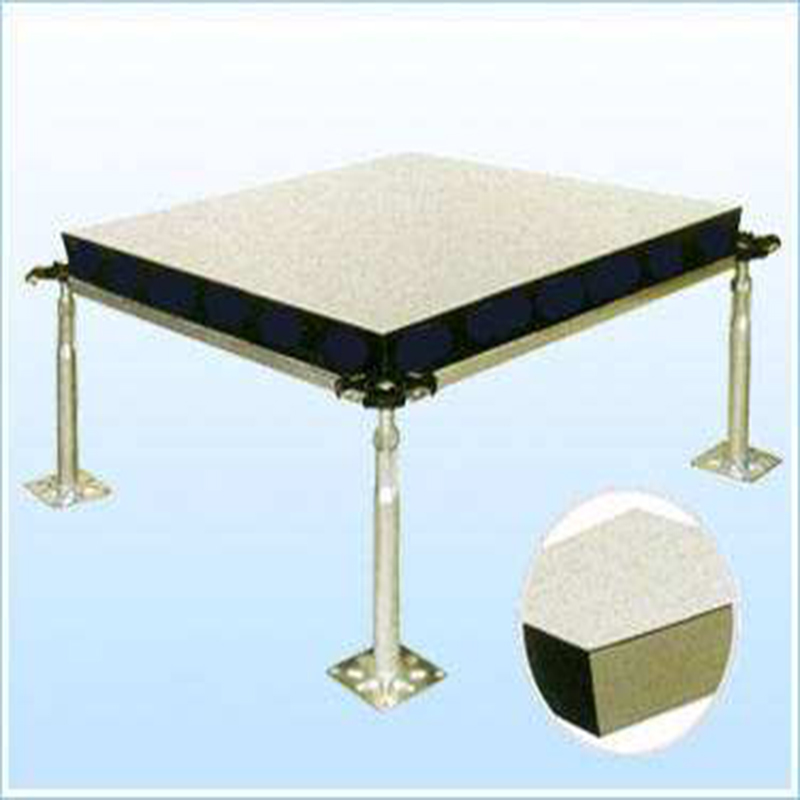

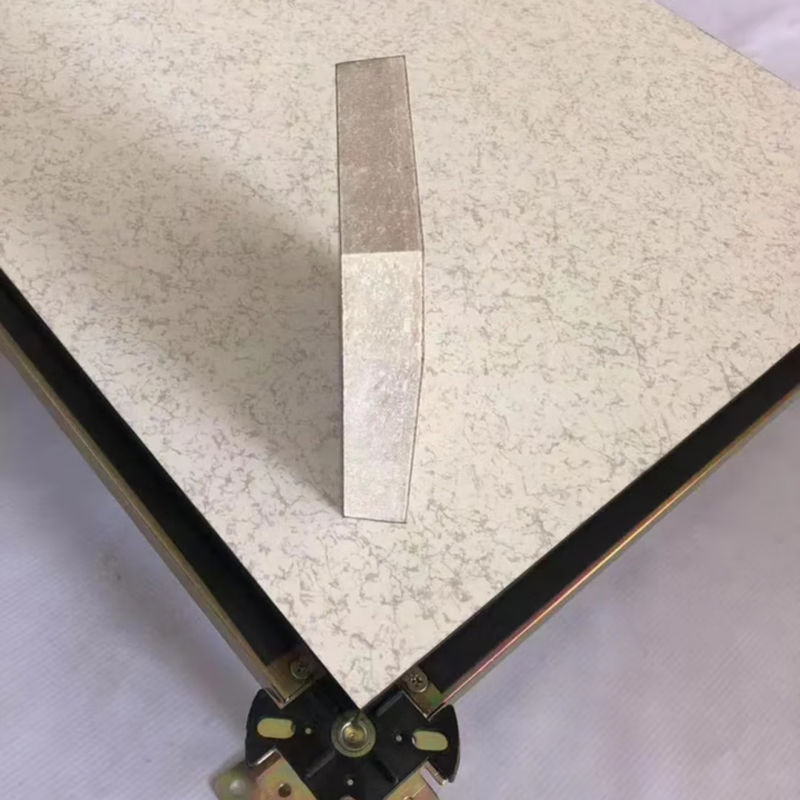

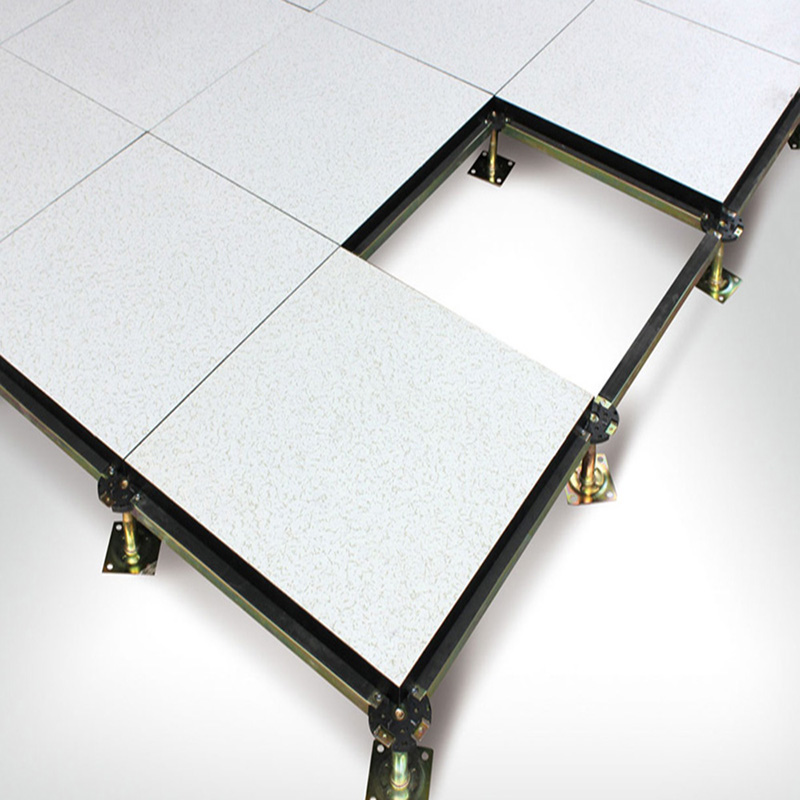

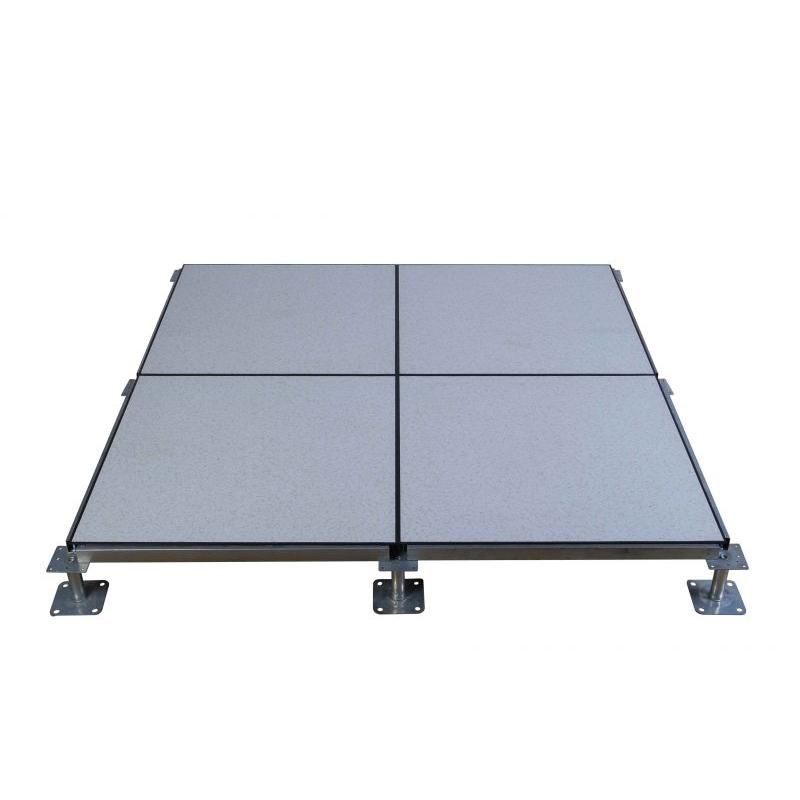

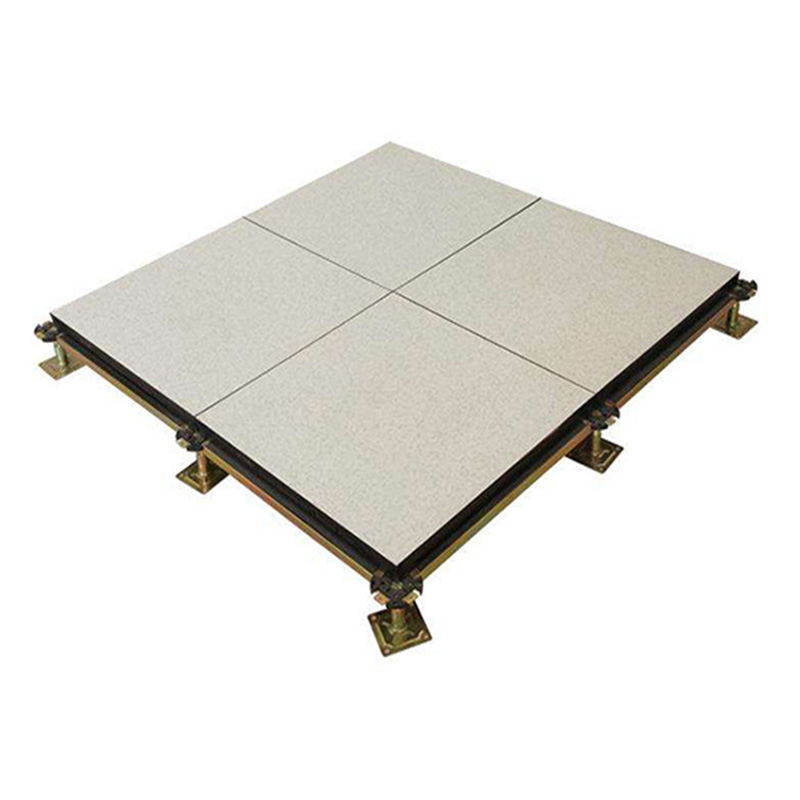

HPL Calcium Sulfate ESD raised access floor
This high-performance raised access floor features a premium high-pressure laminate (HPL) wear layer, a high-strength calcium sulfate (gypsum) core, and ESD (electrostatic discharge) protection. It delivers A1-class fire resistance, excellent load-bearing capacity, stable anti-static performance, and superior sound insulation. The adjustable raised system creates flexible underfloor space for cable management, HVAC, and easy maintenance, making it the ideal solution for data centers, server room
Product Parameters
1. Basic Specification
- Item: HPL Calcium Sulfate ESD Raised Access Floor
- Standard Size: 600mm × 600mm
- Panel Thickness: 30mm / 32mm / 35mm
- Edge Type: Galvanized steel edge trimming
2. Panel Structure
- Surface Finish: High-Pressure Laminate (HPL)
- Core Material: Calcium Sulfate (Gypsum)
- Bottom Panel: Galvanized steel sheet
- Edge Banding: Conductive galvanized steel
3. ESD Performance
- Surface Resistance: 10⁶ – 10⁹ Ω
- System Resistance: 10⁶ – 10⁹ Ω
- ESD Standard: ANSI/ESD S20.20, IEC 61340
4. Mechanical Performance
- Concentrated Load: 4,500N – 6,000N
- Ultimate Load: ≥10,000N
- Deflection: ≤2.0mm under standard load
- Rolling Load: ≥3,500N
5. Physical & Fire Performance
- Fire Rating: Class A1 Non-combustible
- Water Absorption: ≤0.5%
- Density: 1200 – 1600 kg/m³
- Sound Insulation: Good
6. System Components
- Stringer: Galvanized steel
- Pedestal: Adjustable steel pedestal
- Gasket: Conductive gasket
- Fixing: Bolted assembly
-
Explosion-Proof Sealing Putty
The Explosion-Proof Sealing Putty is formulated with a variety of imported German polymers, additives, plasticizers, etc., through a special process. It is a deep black, solvent-free (odorless), eco-friendly, and harmless putty-like substance with an irregular shape.$ 0.00Buy now
-
Premium SBS Modified Bitumen Waterproof Membrane 3mm 4mm For Roof Leak Repair
High-quality SBS modified bitumen waterproof membrane, designed for reliable roof and building waterproofing. Offers excellent tensile strength, crack resistance, and long-lasting leak protection.
Material：SBS Modified Asphalt with Polyester Mat Core
Available Sizes：2.8mm / 3.0mm / 4.0mm Thick, Customizable Length & Width$ 0.00Buy now
-
Premium Self Adhesive Polyester Nonwoven Floor Protection Mat For Renovation
High-quality self-adhesive polyester nonwoven floor protection mat, designed for renovation and painting projects. It provides reliable protection against scratches, paint spills, and damage to floors and furniture.
Material：100% Polyester Nonwoven Fabric
Color：White
Available Sizes：1.1m Width, 1x10m / 1x20m / 1x50m Length$ 0.00Buy now
-
Flexible Organic Plugging Material
Flexible Organic Plugging Material is a fire-resistant, moldable sealing compound designed for firestop applications in building and electrical installations. It provides reliable, long-lasting protection against fire spread, smoke, and water penetration through openings around cables, pipes, and conduits. The material is easy to shape and install, making it ideal for both new construction and retrofitting projects.$ 0.00Buy now
-
Premium PE PP Polymer Waterproof Membrane For Roof Bathroom Waterproofing
High-quality PE/PP composite waterproof membrane, designed for reliable waterproofing in roofs, bathrooms, and basements. Offers excellent tensile strength, flexibility, and durability for long-lasting protection.
Material Polyethylene + Polypropylene Composite
Color Orange / Grey / White / Custom
Available Sizes 300g / 400g / 500g, Customizable Length & Width$ 0.00Buy now
